  2. SV-970.33 - KIT SV-X70 - 2 stoppers - Sliding doors - 70kg / 2m | SAHECO

SV-970.33 - KIT SV-X70 - 2 stoppers - Sliding doors - 70kg / 2m | SAHECO

Product Description

SV-970.33 - KIT SV-X70 - 2 stoppers - Sliding doors - 70kg / 2m

Wall or ceiling mounting

Natural anodized aluminium (matt silver)

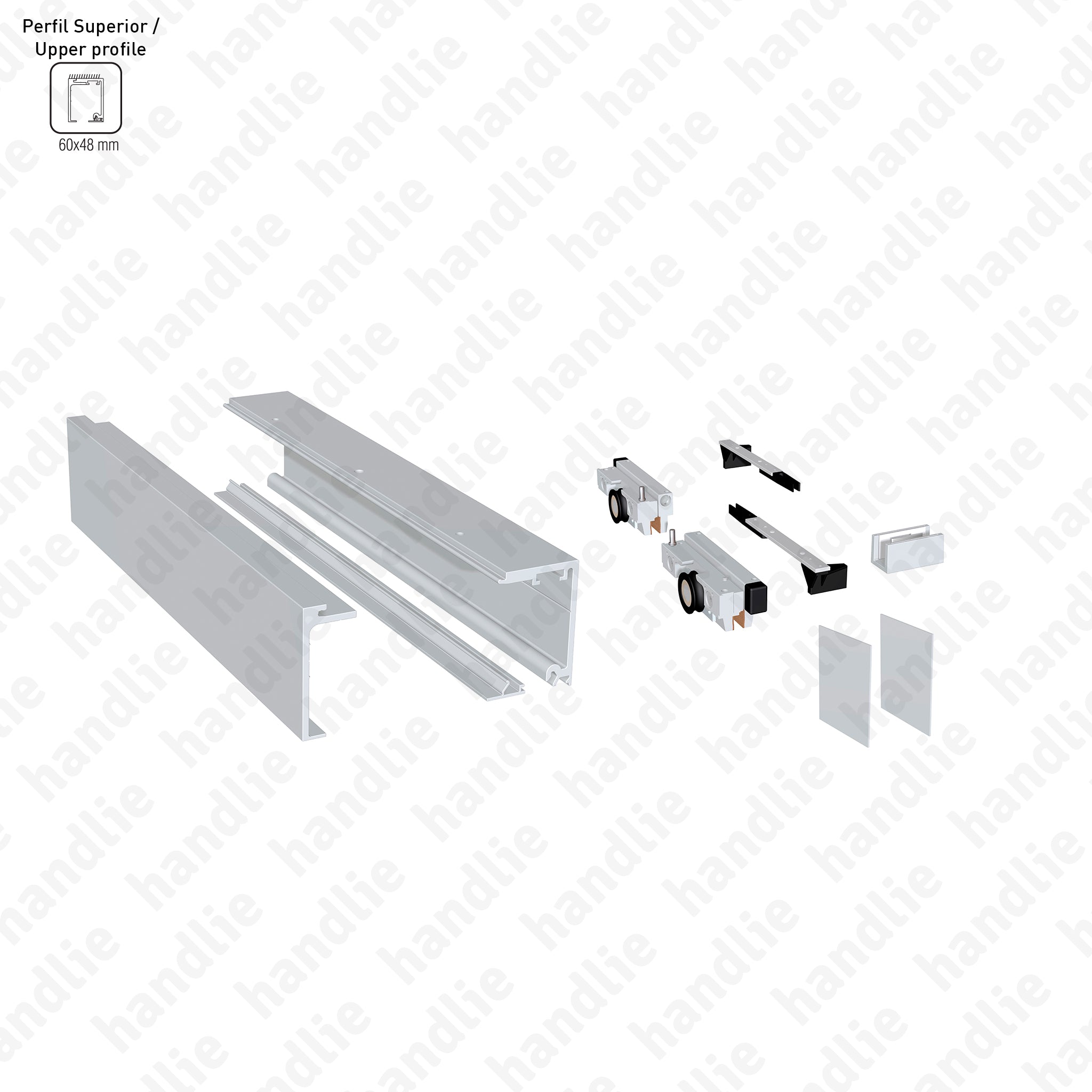

Kit:

  • Roller with ball bearings and rubber stopper on both sides
  • Track - 2m

SV-X70

Compact Glass
Sliding glass door system 8-10mm
Up to 70kg per leaf
Characteristics:
Load capacity: Up to 70Kg
Glass thickness: 8-10mm
Option with Softbrake: 70Kg (maximum)
Minimum width per door:
- With 2 softbrakes (both sides of the door): 635mm

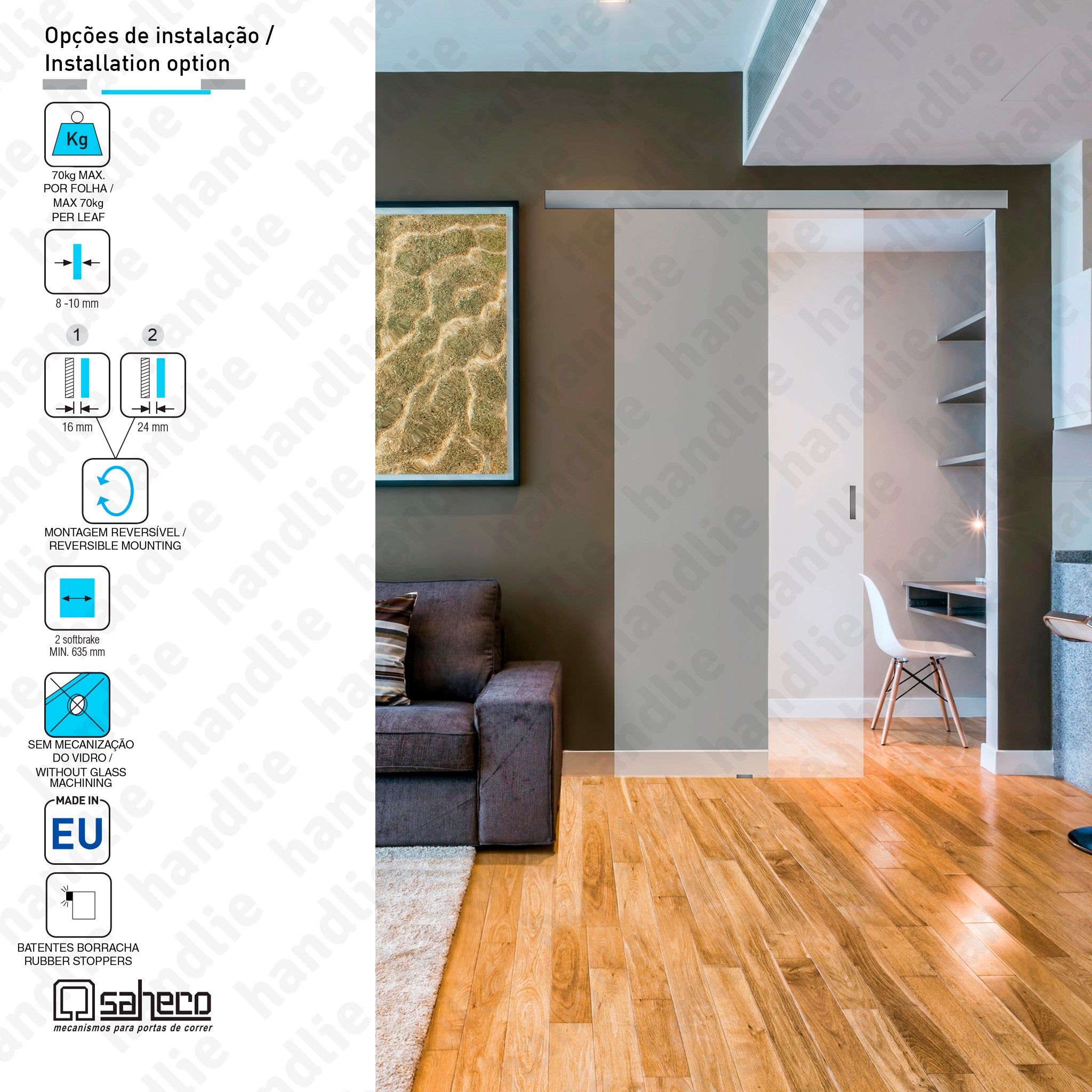

Installation options:
- On the ceiling, false ceiling, wall or side mounted to the glass wall

System that combines the latest technology with a minimalist and attractive design, compact like a box.
Suitable for domestic and commercial use.
All mechanisms, softbrake (damper) included, are fully hidden inside the top track.
Installation: On the ceiling, false ceiling, wall or side mounted to the glass wall. Option: combine with fixed glass leaf.
When side mounting to the wall the system provides an innovative feature, the distance between the wall and the glass door can be adjusted between 16 to 24mm. It gives versatility and an additional advantage to this system.

Easy installation: Doesn't require glass machining, thanks to the innovative clamp fixing system.

Kit with accessories and rollers with ball bearings. Option: with rubber stoppers, anti-shock system or damping with Softbrake providing an even softer opening, closing and sliding.

Tested with 100.000 cycles, according to the european standard EN 1527 / EN 1670
Package: Kit or tracks and accessories separately for different types of installation.

For more information see the technical information image or pdf - Here

Read More
Brand : Saheco
€0,00 VAT inc.
XXX
Kit

Usually in stock, ships within 3 business days
