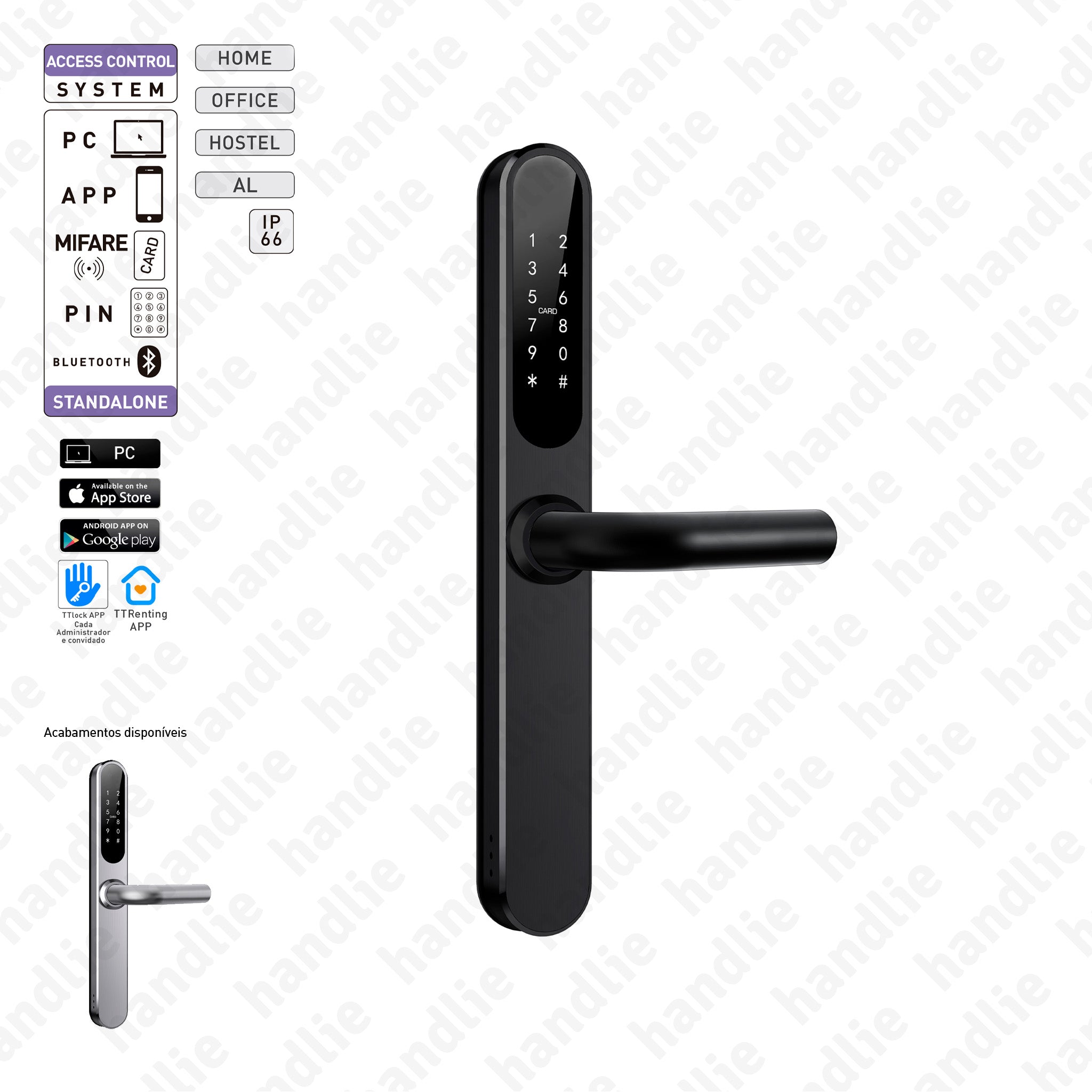

CA.665.TTL - Standalone smart access control

Previous Product | Next Product
Product Description

CA.665.TTL
Standalone smart access control

Perfect solution for offices, residences, local accommodations and hostels.
Suitable for both outdoor and indoor use.

• The system uses an app that allows unlocking via bluetooth, password (keypad) or MIFARE card
• Administrator Bluetooth Code - unlocks with Bluetooth through the app
• Administrator Password - unlocks with a permanent master code
• Remote authorization with APP via Bluetooth - unlocks with a Bluetooth code through the app with authorization sent by the administrator (via PC or smartphone).
• Option to unlock with a MIFARE card
• Remote password authorization - allows sending a permanent or time-limited password
• Low battery consumption - 4 AA batteries (not included). Battery life of 1 year
• Low battery alarm
• Real-time monitoring - monitoring via Bluetooth in the app
• Real-time notifications - when the smartphone and lock are connected to the internet.

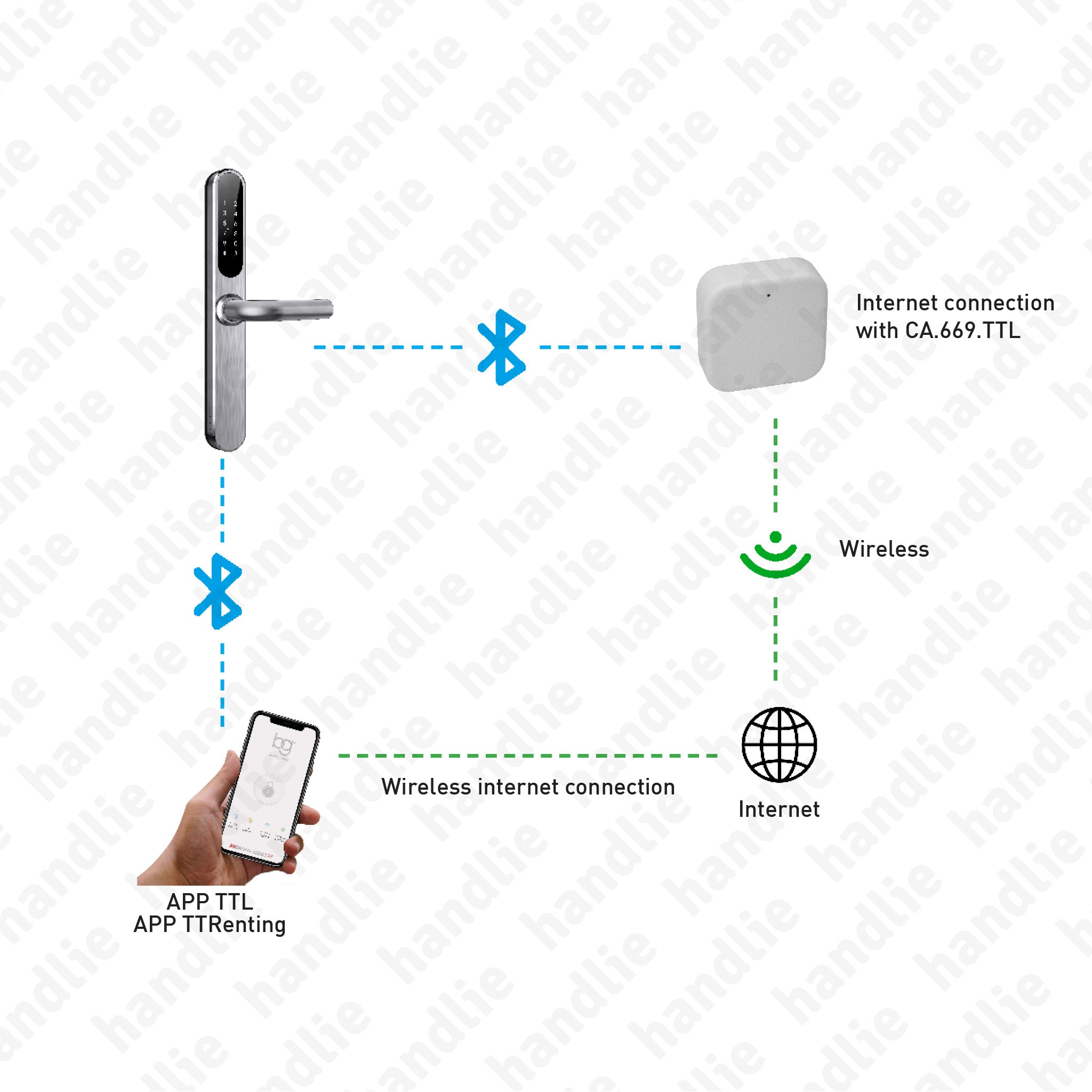

• Internet connection - for real-time control with an internet connection, see CA.669.TTL (sold separately)
• Possibility of remote management with the APP, either offline or online with an internet connection using the CA.669.TTL box
• Easy installation and use
• Instalation on wooden, metal, or aluminum-framed doors
• Door thickness 35 - 65 mm


Technical specifications:
• Power supply: 6V - 4 AA alkaline batteries (not included)
• Keypad: 12 digits
• Weight: 3Kg
• Dimensions: Length 314mm x Width 43mm x Thickness 24,5mm
• Communication mode: Bluetooth 4.1
• Unlocking modes: Bluetooth, Password, MIFARE Card
• Operating Systems: Android 4.3 / IOS 7.0 or higher
• Operating temperature: -35°C to 60°C
• Operating humidity: 0% + 90%
• Protection rating (solids / water): IP66. Fully protected against dust and powerful water jets


Finish: Satin Nickel, Black

Kit Includes:
• 1 Access control
• 1 User manual

Sold separately:
- CA.669.TTL: Box / Gateway for internet connection - See here
- CA.C153: Mifare user card with standard chip - See here
- CA.C162: Key fob with chip - See here

TTlock App:
Provides a software solution for smart locks. The APP is available on the App Store, Google Play and as a Web App for PC.

- The user can download the app and establish a record of software use with TTlock.
- The user is informed that the software is not owned by Batista Gomes Lda., and therefore, its developer/producer is solely responsible for its provision.

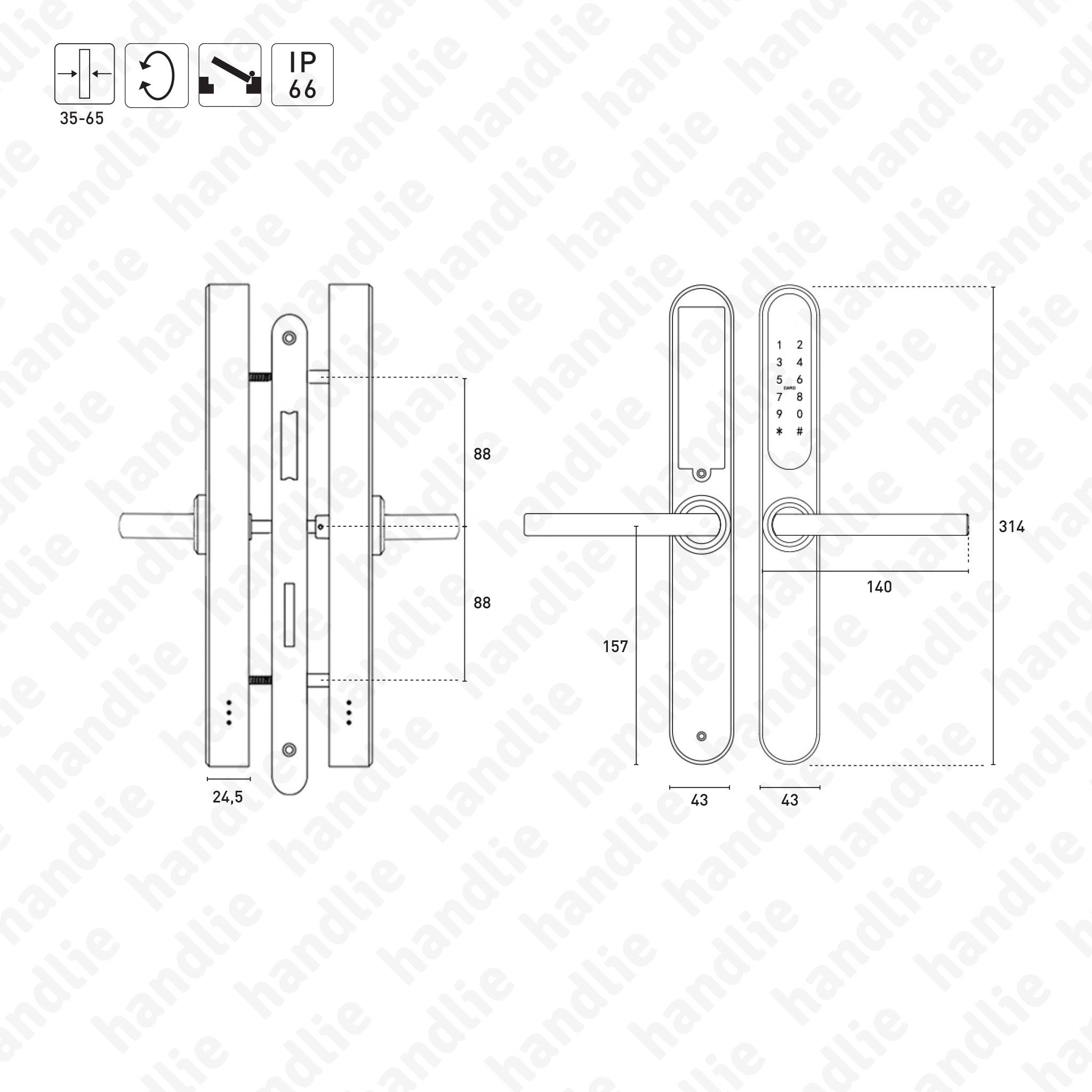

For more information consult the technical drawing.
