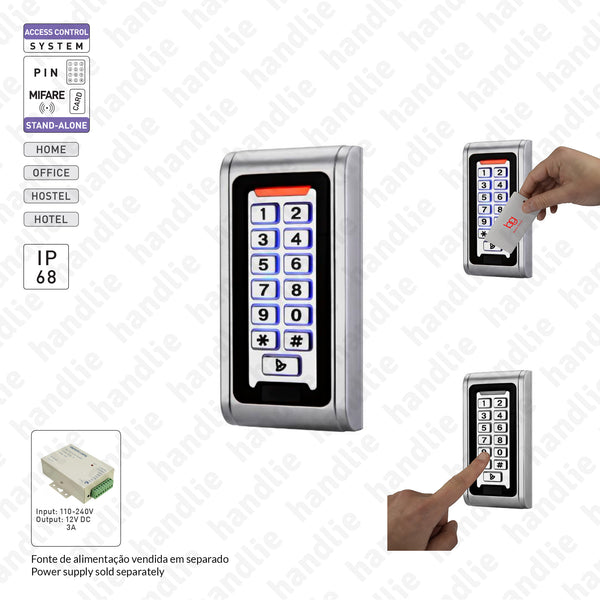

CA.6503 - Standalone access control with PIN code and/or proximity card

Previous Product | Next Product
Product Description

CA.6503
Standalone access control with PIN code and/or proximity card

Especially suitable for exterior / interior access doors in hostile environments - IP 68

Kit with:
• 1 Access control PIN code / Card
• 1 User Manual
• 1 Allen Key
• 2 Wall plugs
• 2 Self-tapping screws
• Star Screws (for fixing)

Standalone access control
Compatible with Mifare user card (not included)
Access with: Proximity card or 4 to 8 digit PIN code (or both)
User capacity: 2.000
Especially suitable for exterior / interior doors in hostile environments
Vandal proof
Electronic components fully protected
Protection level IP 68
Output current cut for short-circuit protection
Open door alert
Low power consumption (30mA)
Easy installation and programming
Blue backlit keypad
LEDs to indicate status (tricolor)
Electrical operation 12V AC/DC
Access records

Specifications:

Supply voltage: 12-24V DC
Keypad: 12 keys, 2x6 digits
Type of card: Mifare (CA.C153)
Reading distance: 3-6 cm
Consumption <60mA
Standby power: 25±5mA
Lock Output Current: Max. 3A
Alarm Output Current: Max. 20A
Operating temperature: -45ºC to 60ºC
Relative humidity resistance: 10% - 90% RH
Relay adjustment: 0-99 seconds
Alarm adjustment: 0-3 minutes
Wiegand Interface: 26 bit
Wiring: Electric Lock, Exit Button, External Alarm
Installation and operating instructions included

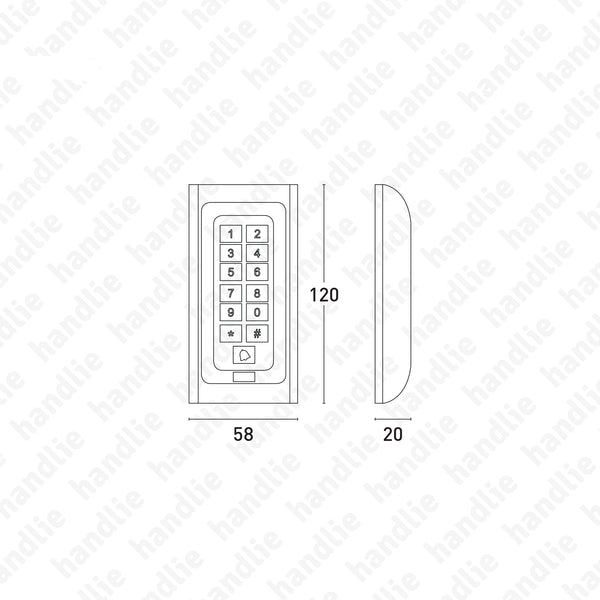

Dimensions: 120x58x20mm

Supplied separately:

• Mifare user cards with normal chip - HERE
• Electric locks and strikes
• Power Supply TRE.TA.6800K3A - 3A - HERE

For more information see the technical information image

Read More
Brand : Batista Gomes
€0,00 VAT inc.
XXX
Kit

Usually in stock, ships within 3 business days
