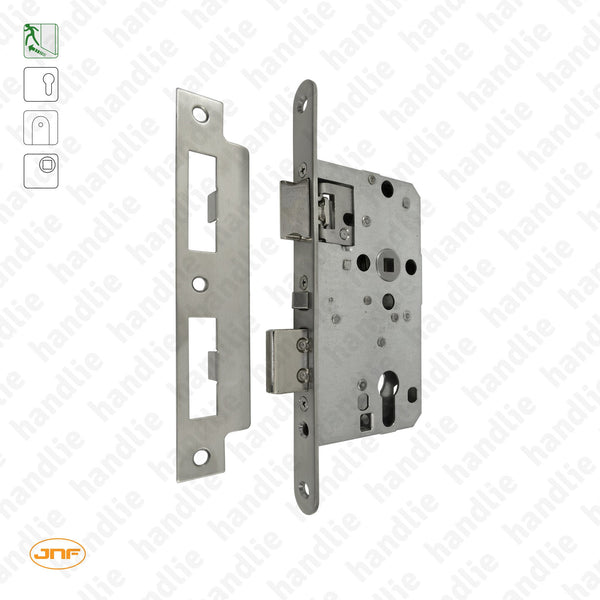

IN.20.789 - Panic lock (Normal follower / E function - Automatic)

Previous Product | Next Product
Product Description

IN.20.789

PANIC LOCK (Automatic)

Round faceplate
Backset : 55 mm

Normal follower: 8x8
Panic function E (Automatic)
Reversible (Right / Left)

Panic mortise lock with self-closing
When closing the door, the latch locks automatically without needing the key.
For euro cylinder, supplied separately (cylinder not included)
Latch and deadbolt operated by the handle or key (cylinder).
Latch's reversibility ( Right/ Left):
To reverse the latch's position you have to unscrew the lock's strike

Case in zinc-coated steel and satin stainless steel strike
Strike plate in 304 satin stainless steel.

Applied in emergency exits combined with compatible handles (several models):

Standard application with:
- Fixed / Turning handle
- Turning / Turning handle with integrated access control
Especially suitable for doors in which it may be necessary to prevent unauthorized external access.

Operation:
Panic function E (automatic)
Application with turning handles (interior) and fixed handles (exterior)

INTERIOR: It always allows to open on the inside; with key and also with handle, even when the lock is locked by the deadbolt (panic function)

EXTERIOR: Deadbolt and latch open with the key (cylinder)

LOCKING: The door is automatically locked, through the lock's latch and deadbolt. It can only be opened on the exterior by key.

Other information:
Application with turning handle (interior) / Turning handle (exterior):
The lock always opens on the interior and exterior, even when the deadbolt is closed (passage mode).

Application with turning handle (interior) / Turning handle (exterior) with integrated access control: It always allows to open the door by key or handle on the interior. It allows opening on the exterior by the key (cylinder) or handle, after the corresponding access is activated.

Opening with electric strike:
This option isn't possible, because the deadbolt locks automatically.

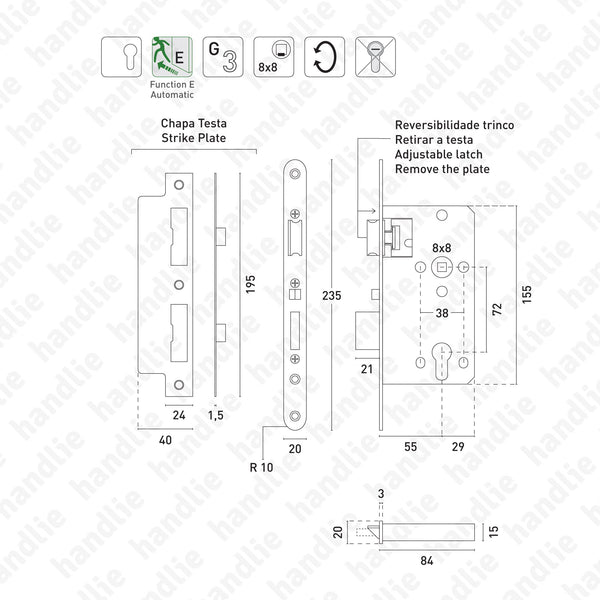

For more information see the technical information image.

Read More
Brand : JNF
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
