EC.1151 - COCKTAIL - Hardware system for concealed/pull-out tables

Product Description

EC.1151 - COCKTAIL
Hardware system for concealed/pull-out tables

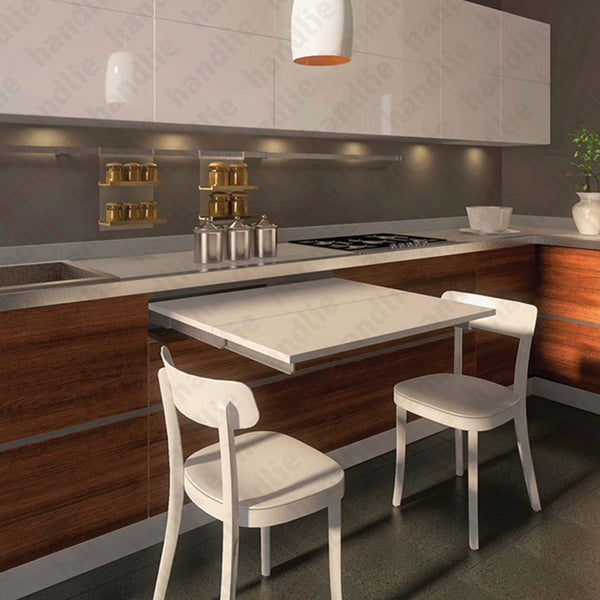

Telescopic system with slides that allows for an easy and soft slide, and when operated brings the table top with it. One of the advantages of this system is that all components are integrated in it, without needing to be stored in another place.

The table top has 2 leaves (not included) connected by concealed hinges (not included).

• Minimum cabinet interior depth: 540mm
• Minimum drawer height: 120mm
• System designed for tables with approximately 750mm of length
• Load capacity: 60kg (evenly distributed by the table)
• Aluminium slides over Natural Anodized Aluminium
• Package: 1 Kit (table tops and hinges not included)

Dimensions options (M mm):
450mm, 600mm, 900mm, 1200mm

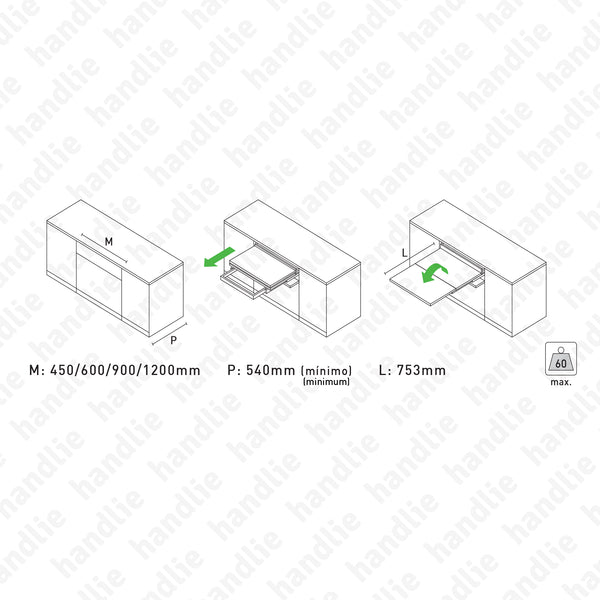

For more information see the technical information image and pdf - Here

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Kit

Usually ships within 15 business days
