Product Description

TS.1500 - EN 3/4
OVERHEAD DOOR CLOSER WITH LINK ARM FOR SINGLE ACTION DOORS UP TO 80KG
EN 1154: FORCE 3/4

• For single action doors
• For medium use
• Door width: Up to 1100mm
• Door weight: Up to 80kg
• Ambidextrous: For right and left handed doors
• Finish: Black Lacquered Aluminium/White Lacquered Aluminium
• Without hold-open

Certification Standards:
EN 1154 ; CE ; EN 1155 ; EN 1158

• Overhead rack and pinion door closer with link arm
• Closing force EN 1154 - 3/4, adjustable according to arm fixing
• Adjustable closing speed
• Hydraulic adjustment of the latching action

Maximum opening angle: 180º

Fire doors: Mounting plate for application in fire doors, not included in the standard version

Mounting on the frame: Angled mounting plate for application over the frame, not included in the standard version

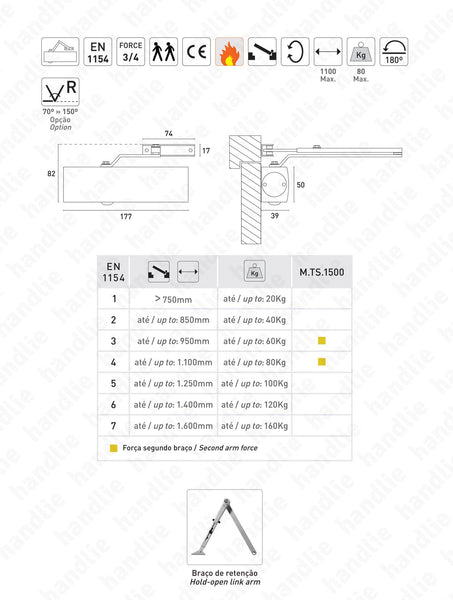

For more information see the technical information image or pdf - Here

Read More
Brand : GEZE
€0,00 VAT inc.
XXX
Unit

Usually ships within 15 business days
