ACE.271.95.203 - Lift mechanism for foldaway beds

Previous Product | Next Product
Product Description

ACE.271.95.203
Lift mechanism for foldaway beds

For end opening
Maximum bed weight: 100kg
Bed weight = total weight of the bed box, slatted frame, mattress and bedding.

The specified cabinet dimensions are the internal cabinet dimensions

Material: Steel
Finish: Powder coated
Fittings and mounting plate: Black, RAL 9011
Angular foot: White aluminium, RAL 9006

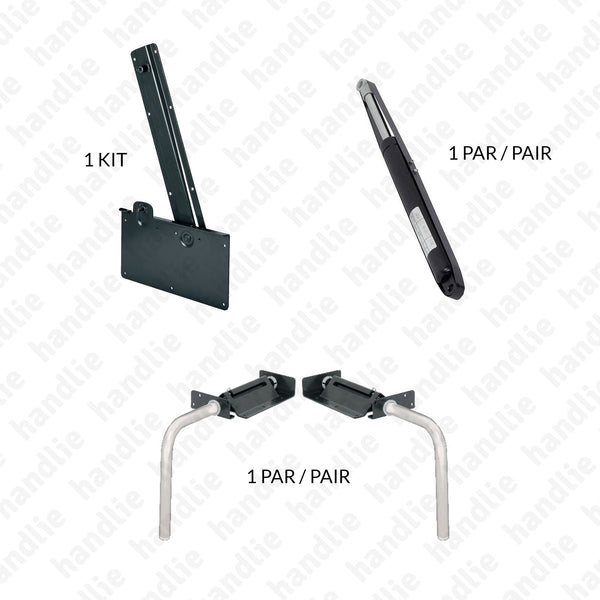

With:
- 1 pair of foldaway bed fittings with pivot bearings and positioning bolts for gas-filled struts
- 2 securing brackets (anti-tilt facility)
- 1 kit of fixing fittings
- 1 set of installation instructions

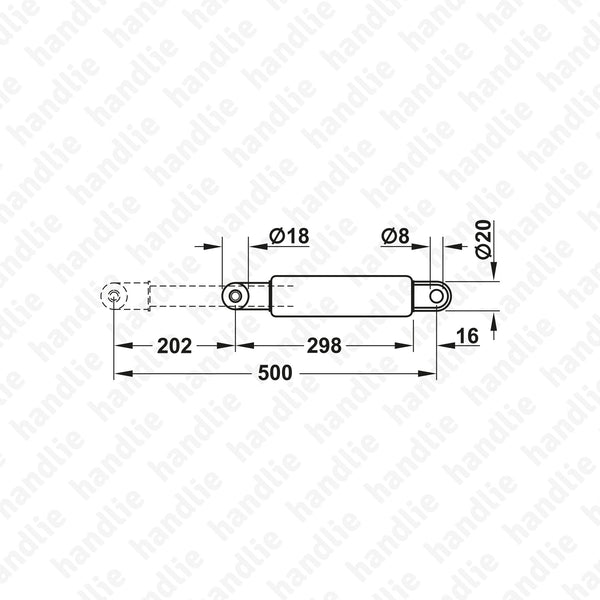

- 2 gas-filled struts
- 1 pair of angular feet

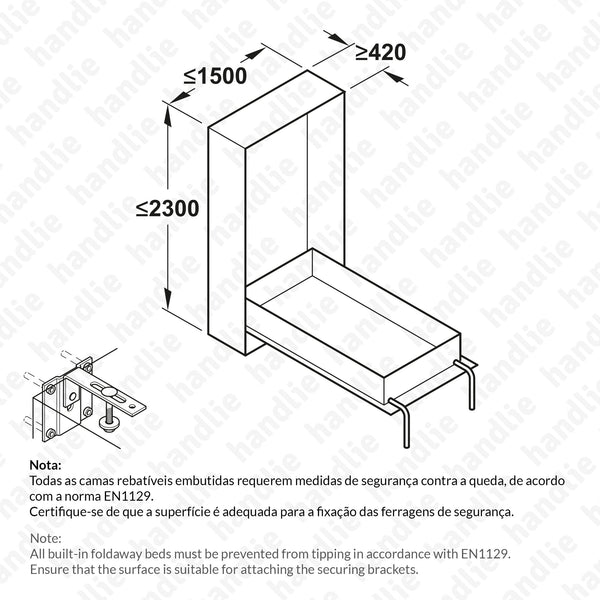

Mounting Recommendation
- Material thickness of the bed box and cabinet: 20 mm
- Internal cabinet height: mattress length +170mm
- Internal cabinet width: mattress width +94mm
- Two bed boxes should be mounted next to each other to make a double bed.

To hold the bedding when closing the bed, we recommend a bedding strap ACE.271.87.920 - Here

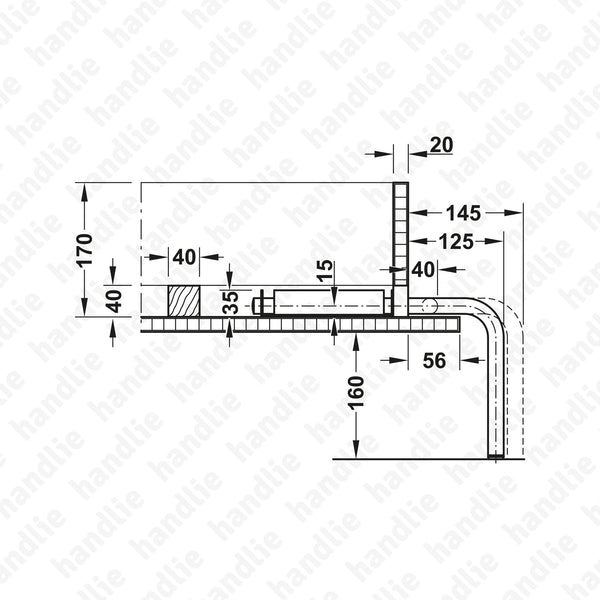

For more information see the technical information image

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Kit

Usually ships within 15 business days
