DV.30.03.110 - Hydraulic hinge glass / glass 90º+90º - ALUMINIUM

Previous Product | Next Product
Product Description

DV.30.03.110
Hydraulic hinge glass / glass
Suitable for humid and saline environments
Double, same plane

• Fixing: Glass / Glass 90º+90º
• Double, same plane
• Suitable for humid and saline environments
• Specially suitable for glass doors of spas, saunas, pools etc
• High corrosion resistance: Grade 5 / EN 1670
• For glass thickness: 8-12mm
• Door weight: Up to 100Kgs (2 hinges), considering doors with 3000mm height / 1000mm width
• Adjustable closing speed
• Holds open at 0º and +/-90º with self-closing from +/-80º
• Constant temperature hydraulic fluid, flash point at 160ºC, freezing point at -40°C
• Manufactured in aluminium alloy by extrusion process
• Pivot in stainless steel / Screws in A2 stainless steel
• Glass clamps in PE
• Requires glass machining
• Ambidextrous
• Finish: Natural Anodized Aluminium
• Certifications:
EN 1154 / Grade 8 / 500.000 cycles
EN 1670 / Grade 5
• Available: same hinge models without hydraulic system

By request:
• For thickness: 17mm
• Other finishes

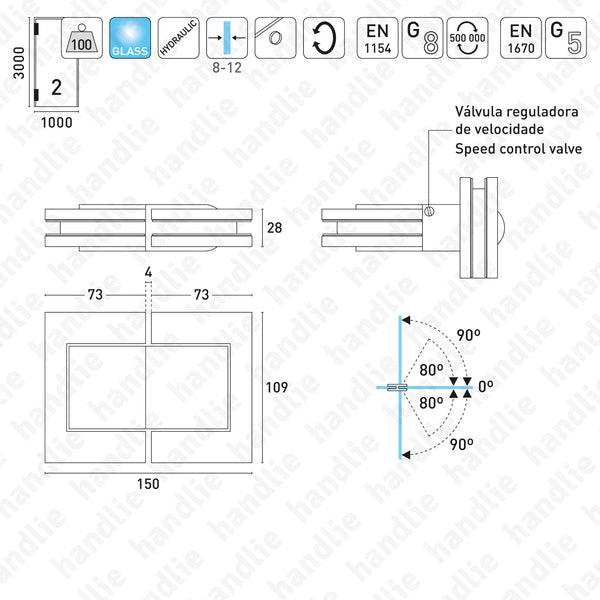

For more information see the technical information image or PDF - HERE
