D.GRA.F029.140.334 - "TIOMOS" M9 hinge, 110º - With soft-close - 4D Adjustment | GRASS

Product Description

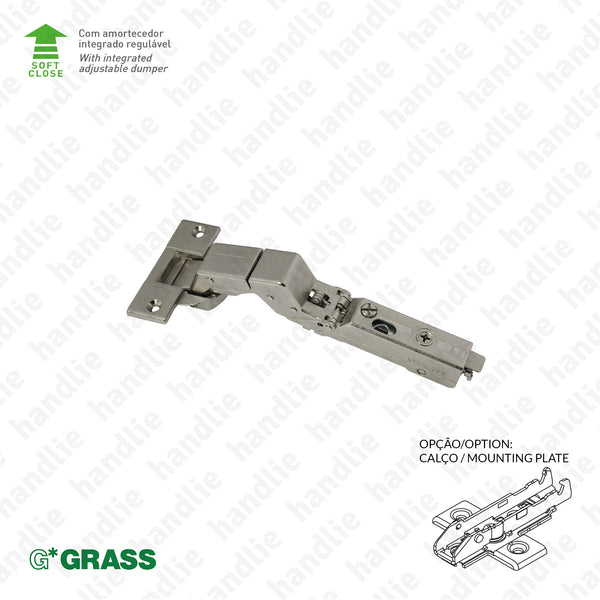

D.GRA.F029.140.334 - "TIOMOS" M9 hinge, 110º - With soft-close - 4D Adjustment

Hinge with CLICK-ON System - Soft-Close with closing speed adjustment

Option: 4D adjustment available with application of the suggested mounting plate

Low cup depth: 9mm

To apply in doors with a thickness of 12mm and onwards

Center to center: 45/9.5

Mounting plate option: with "Tiomos" click cross mounting plate H2

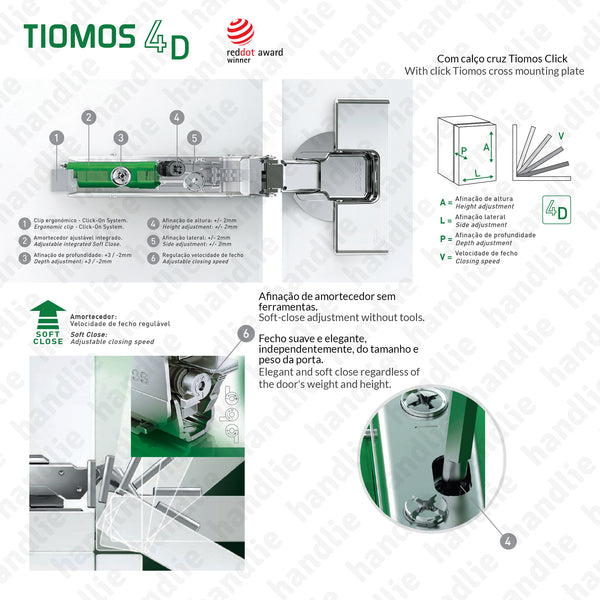

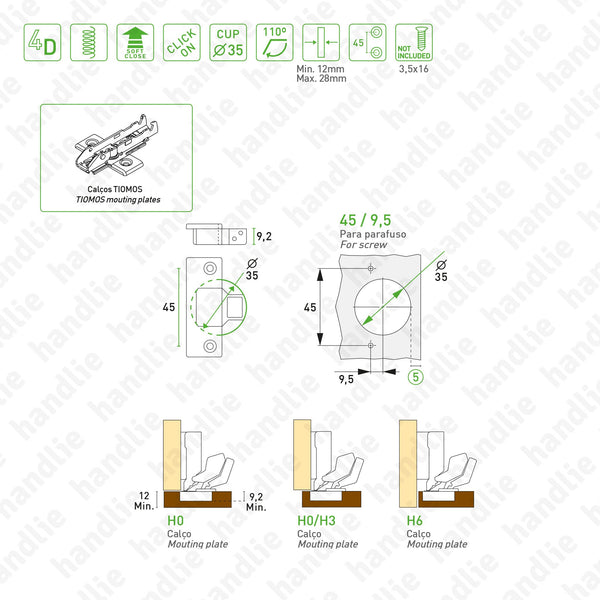

For more information see the technical information image.

Read More
Brand : Grass
€0,00 VAT inc.
XXX
Unit

Usually in stock, ships within 3 business days
