COR.7002 - DYNAMOOV - GRASS - Concealed slides with Soft-Close for drawers / Full extension slide / 30kg | GRASS

Product Description

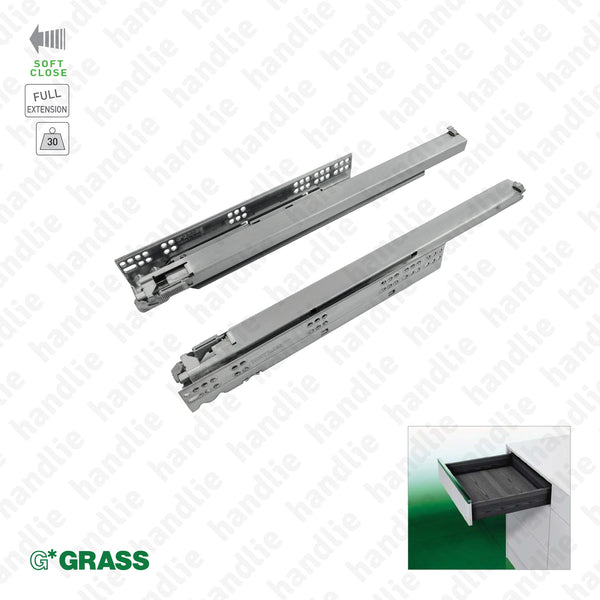

DYNAMOOV - COR.7002
Concealed slides pair with Soft-Close for drawers
GRASS

• Full extension slide
• Soft-Close (with damper)

Load capacity: 30kg
• Dimensions: 270 / 300 / 350 / 400 / 450 / 500 / 550mm
• Other dimensions: By request

Finish:
Zinc-coated steel slide

- Full extension slides with integrated soft-close
- Option: with single extension slides / 25Kg (COR.7000)
- Fully synchronized slides without mid-way knock
- Silent slide and damping
- Maximum panel thickness: 16mm
- Integrated 2D adjustment with suitable accessories
» Height: +3,5mm
» Width (front): ±1,5mm

Option:
- Front support kit for 1D adjustment: Height
- Front support kit for 2D adjustment: Height / width

- Choose between Soft-Close or Tipmatic (Push Open) slide system, without needing to change the drawer.
- GRASS Quality - Austria

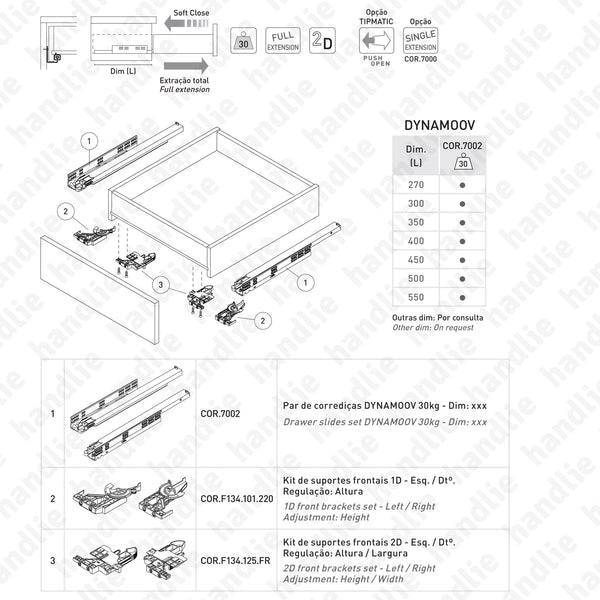

For more information see the technical information image.

Read More
Brand : Grass
€0,00 C/IVA
XXX
Kit

Usually in stock, ships within 3 business days
