COR.7003 - DYNAMOOV TIPMATIC - GRASS - TIPMATIC (Push Open) concealed slides for drawers / Full extension slide / 30kg | GRASS

Product Description

DYNAMOOV TIPMATIC - COR.7003
TIPMATIC (Push Open) concealed slides pair for drawers
GRASS

• Full extension slide
• Push Open System

• Load capacity: 30kg
• Dimensions: 300 / 350 / 400 / 450 / 500 / 550mm
• Other dimensions: By request

Finish:
Zinc-coated steel

- DYNAMOOV TIPMATIC slides for wooden drawers
- Full extension slides with PUSH OPEN system
- Mechanical opening system
- Slide with integrated TIPMATIC mechanism. Doesn't need additional work
- Optimal opening action by pressing the drawer's corner
- Doesn't get damaged when opening the drawer in the traditional manner.
- Fully synchronized slides without mid-way knock
- Continuous self closing of the drawer's slide
- Maximum panel thickness: 16mm
- Integrated 2D adjustment with suitable accessories
» Height: +3,5mm
» Width (front): ±1,5mm
- COR.F134.101.220 Front support kit for 1D adjustment: Height
- COR.F134.125.FR Front support kit for 2D adjustment: Height / width

- Easy application
- Choose between Tipmatic (Push Open) or Soft-Close slide system, without needing to change the drawer.
- GRASS Quality - Austria

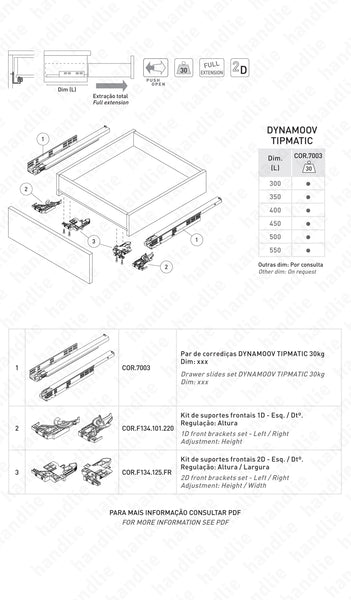

For more information see the technical information image.



Read More
Brand : Grass
€0,00 VAT inc.
XXX
Kit

Usually in stock, ships within 3 business days
