Product Description

DYNAPRO - COR.7005.1

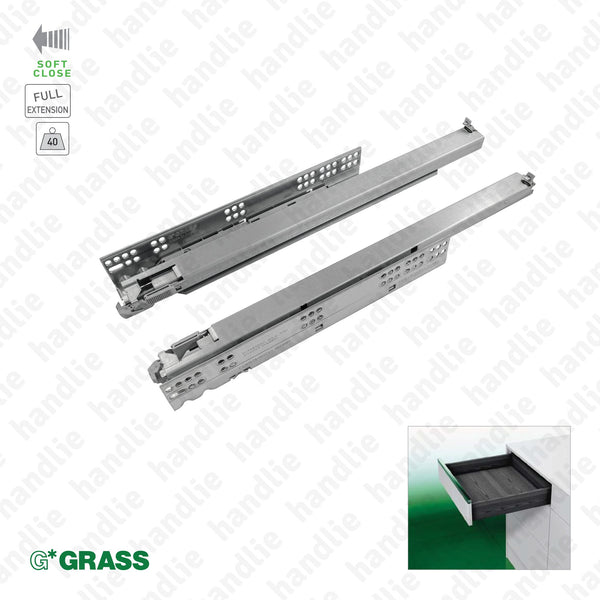

Concealed slides pair with Soft-Close for drawers
GRASS

• Full extension slide
• Soft-Close (with damper)
• Load capacity: 40kg
• Dimensions: 300 / 350 / 400 / 450 / 500 / 550 / 600mm

Finish:
Zinc-coated steel slide

- Full extension slides with integrated soft-close
- Option: with "DYNAPRO TIPMATIC" slides
- PUSH OPEN System
- Fully synchronized slides without mid-way knock
- Silent slide and damping
- Maximum panel thickness: 16mm
- Integrated 3D adjustment with suitable accessories
» Height: +3,5mm
» Width: ±1,5mm
» Tilt: +4mm
-COR.F134.101.220 Front support kit for 1D adjustment: Height
- COR.F134.125.FR Front support kit for 2D adjustment: Height / width
- COR.F134.125.TR Back support kit for 1D adjustment: Tilt
- COR.F134.125.FR + COR.134.125.TR Support kit for 3D adjustment: Height / width / tilt

- Choose between Soft-Close or Tipmatic (Push Open) slide system, without needing to change the drawer.
- GRASS Quality - Austria

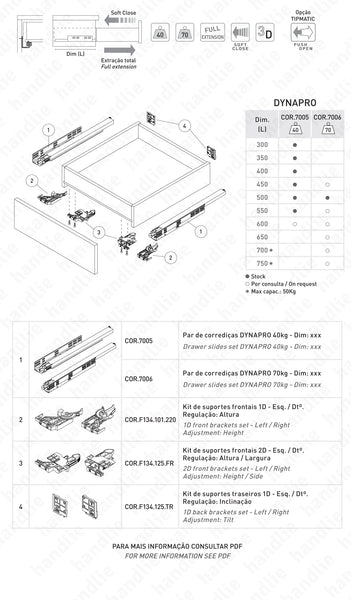

For more information see the technical information image.

Read More
Brand : Grass
€0,00 VAT inc.
XXX
Kit

Usually in stock, ships within 3 business days
