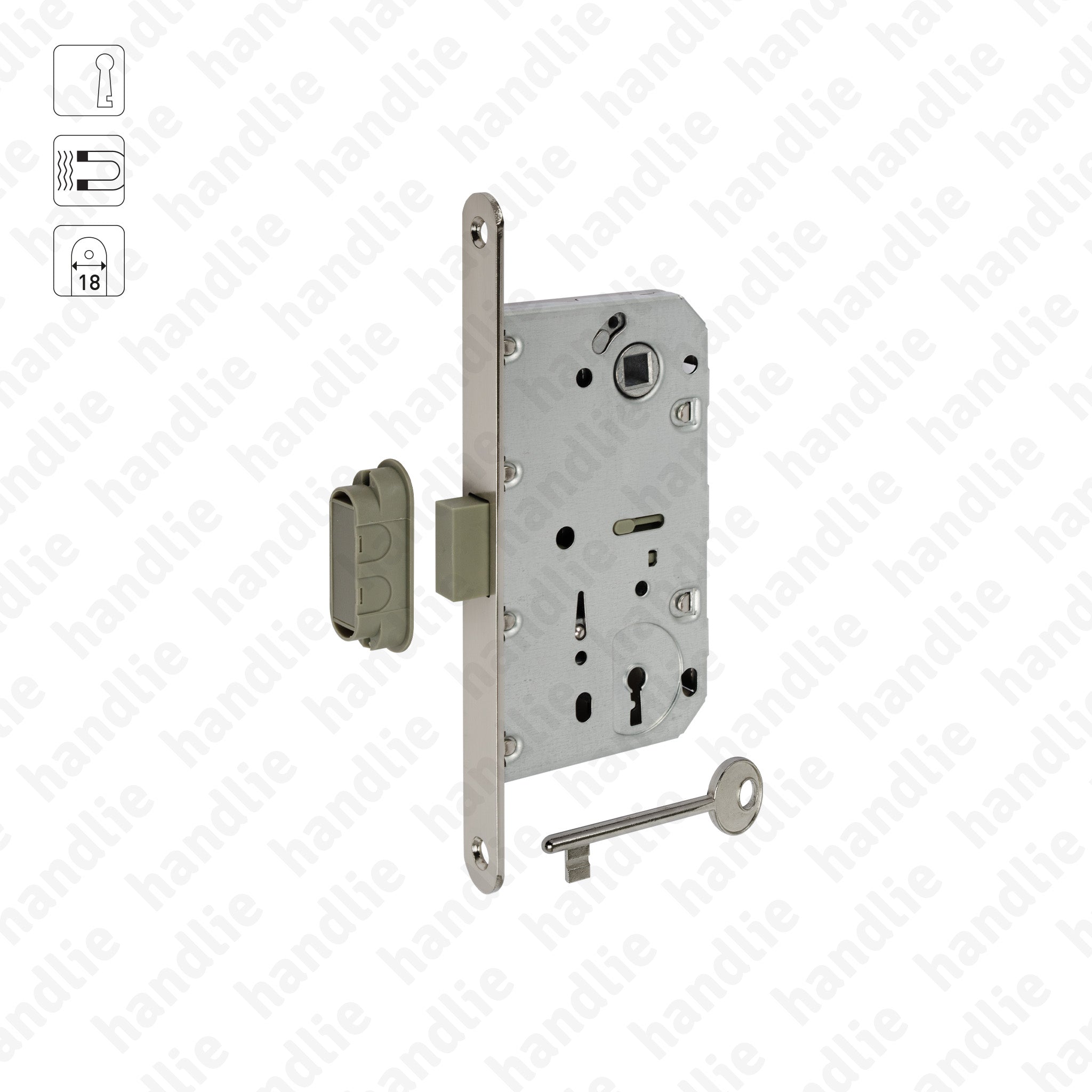

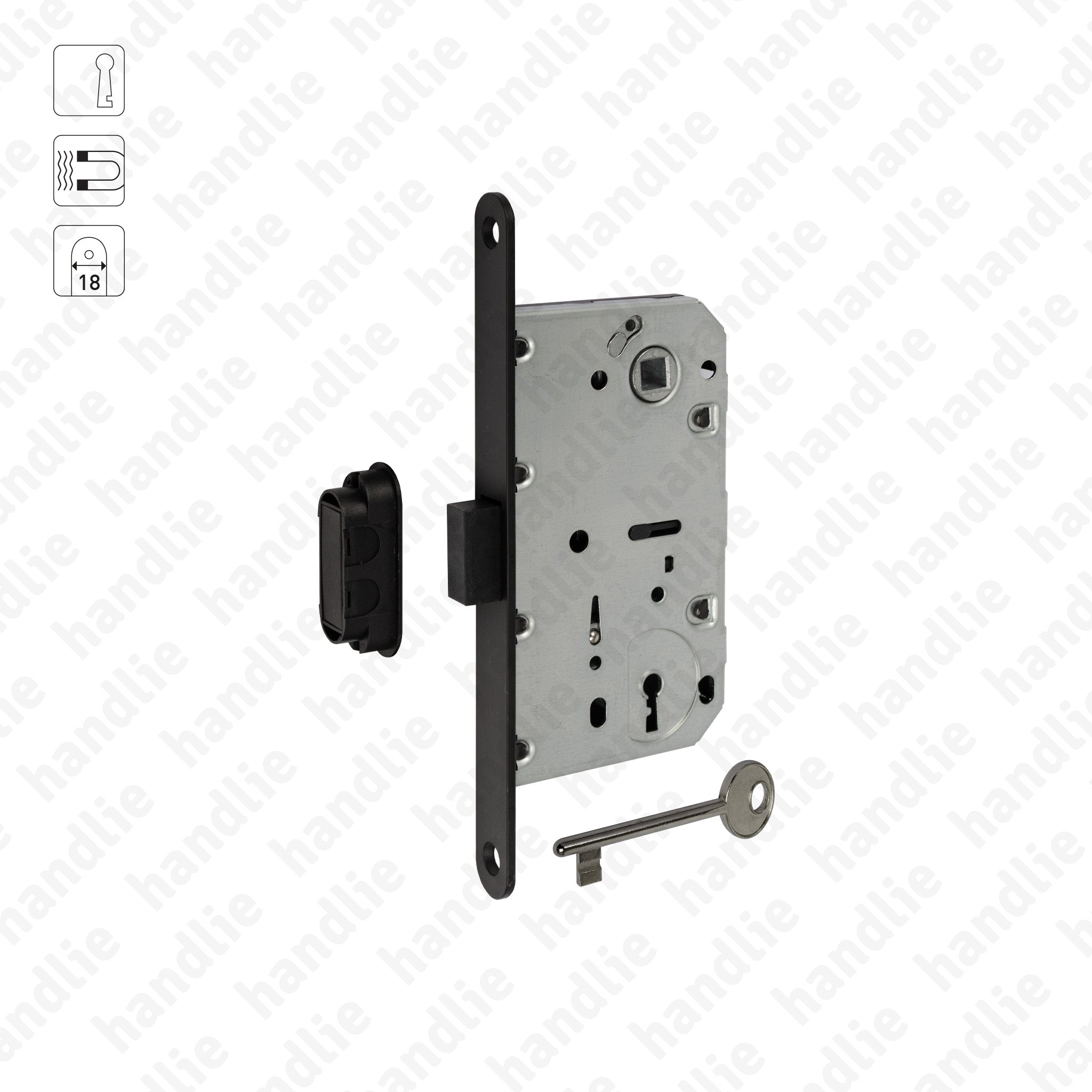

F.115.91.01.R - Magnetic mortise lock with key (Series 115)

Product Description

F.115.91.01.R - Round faceplate

• Magnetic latch / Key
• Round faceplate
• Faceplate width: 18mm
• Backset: 50mm
• Follower: 8mm
• Center to center: 90mm
• Reversible (Right or Left)
• Mortise lock for interior doors with magnetic latch and key
• The latch is operated by the magnetic action of the strike plate. Retracts with the movement of the handle or the key
• When operating the key, the magnetic latch locks / unlocks
• Applicable in right and left handed doors without needing to reverse the latch
• Included strike plate / magnetic support

Other versions F.115 Series:
- F.115.91.03 - For euro cylinder - HERE
- F.115.91.03 + CIL.AWC - WC/2 followers (WC) - HERE

Finishes:
- Satin Nickel and Matt Black

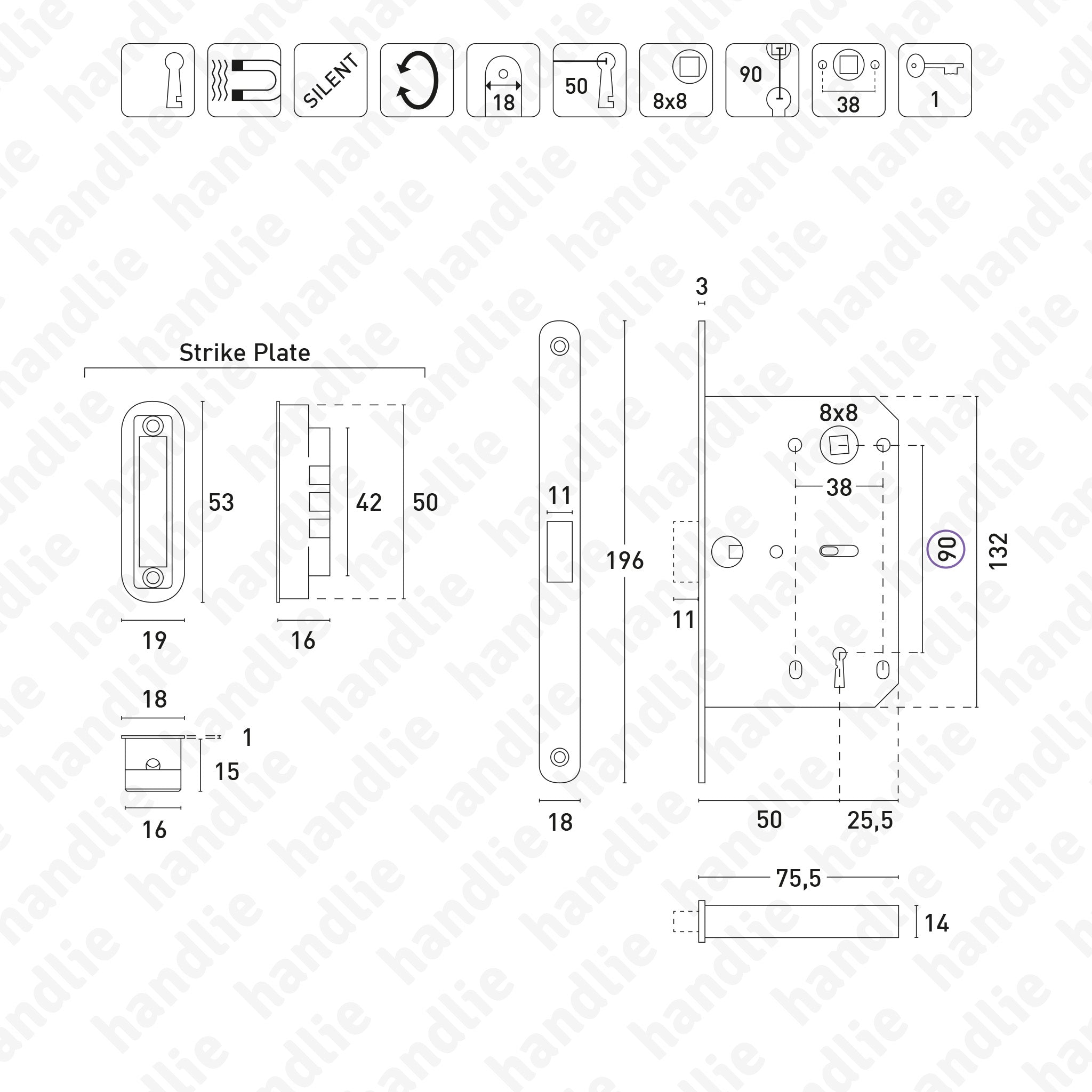

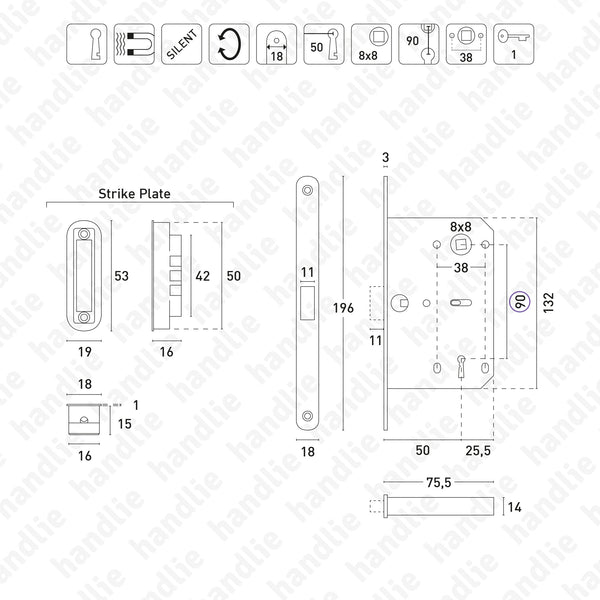

For more information consult the technical drawing.
