TE.240.3D - Concealed hinge - Tectus 3D - Load capacity 60 Kgs

Previous Product | Next Product
Product Description

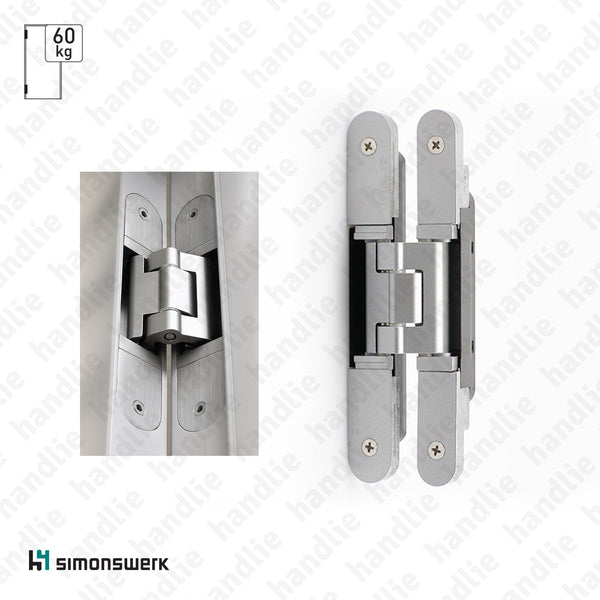

TECTUS D.TE.240.3D
Fully concealed hinges for doors up to 60Kgs (2 hinges, doors 2000x1000).
With 3D adjustment

• Side +/- 3mm
   Height +/- 3mm
   Depth +/- 1,5mm
• Opening angle 180º
• Minimum door thickness 26mm
• Cutter diameter: 16mm
• Suitable for right and left handed doors
• For wood, steel or aluminium framed doors
• Perfect acoustic insulation, anti-theft protection and fire and smoke resistance.
• CE Certification. Suitable for fire doors
• IFT performance certification
• TE 240 3D: Replaces the previous one TE 210 3D

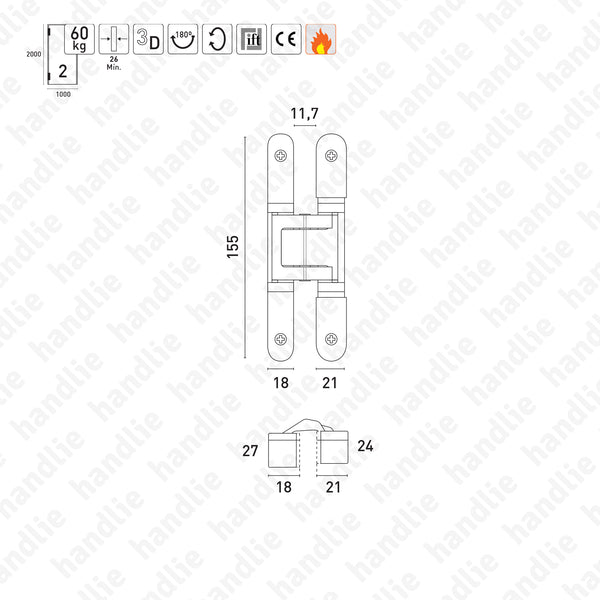

For more information see the technical information image or pdf - Here

Read More
Brand : Simonswerk
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
