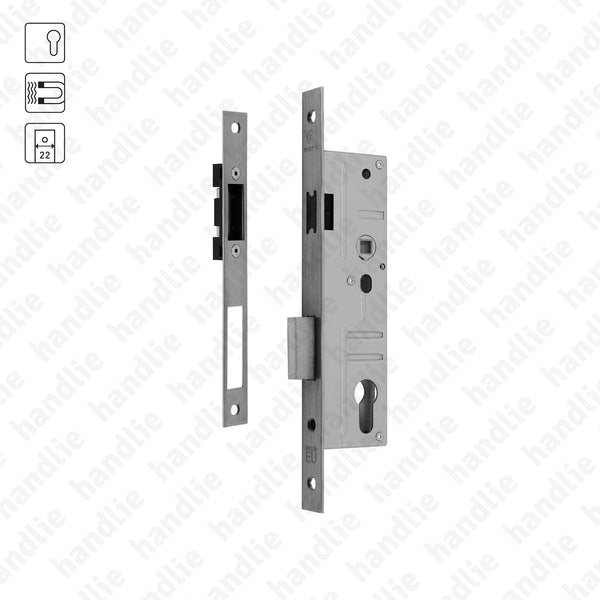

F.528.91.03 - Magnetic mortise lock for cylinder

Previous Product | Next Product
Product Description

F.528.91.03
Magnetic mortise lock for cylinder - Deadbolt and magnetic latch

F.528.91.03 - Square faceplate

• Mortise lock for doors with silent magnetic latch and deadbolt for euro cylinder
• Cylinder supplied separately
• The latch is operated by the magnetic action on the strike plate
• It retracts with the handle
• The deadbolt is operated by the cylinder
• Applied to right or left handed doors without needing to reverse the latch
• Silent magnetic latch and sliding deadbolt
• Square faceplate
• Faceplate width: 22mm
• Backset: 35mm
• Backset option: 25; 30; 40mm (by request)
• Follower: 8mm
• Center to center: 85mm
• Ambidextrous (right / left)
• Suitable for light use
• Grade 1
• Faceplate in satin stainless steel

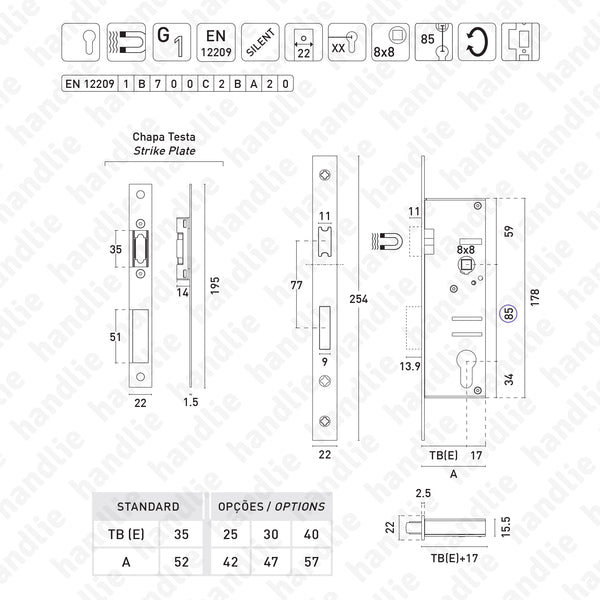

For more information consult the technical drawing.
