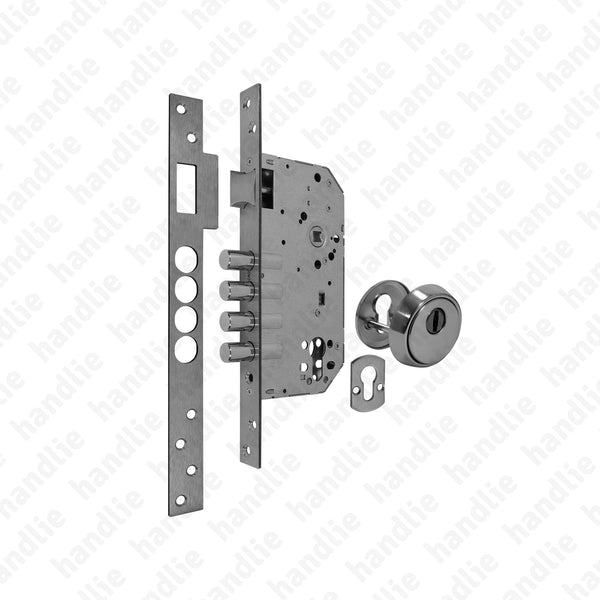

F.750.1.03 - Security mortise lock (1 locking point) for euro cylinder - STAINLESS STEEL

Previous Product | Next Product
Product Description

F.750.1.03 - Square faceplate

Security mortise lock for exterior doors

• Grade 3 / Intensive use
• Backset: 60mm
• Follower: 8mm
• Center to center: 85mm
• Reversible latch
• 4 round deadbolts in nickel steel
• Integral security escutcheon
• Security cylinder not included. Supplied separately
• Operates with security or normal euro cylinders
• With faceplate and strike plate in satin stainless steel

Includes:

• Exterior security escutcheon in anti-drill steel with brass cover, fully protecting the cylinder and with adapter to adjust to the cylinder's dimension and interior plate in brushed nickel brass

Options:

• Possibility of supplying keyed alike and master keyed cylinders of several dimensions

With centered lock:

- Door with 35mm thickness: Cylinder 30+30
- Door with 40mm thickness: Cylinder 33+33 / 35+35

Other thicknesses or with uncentered lock: By request

Euro cylinders: See cylinders or click here

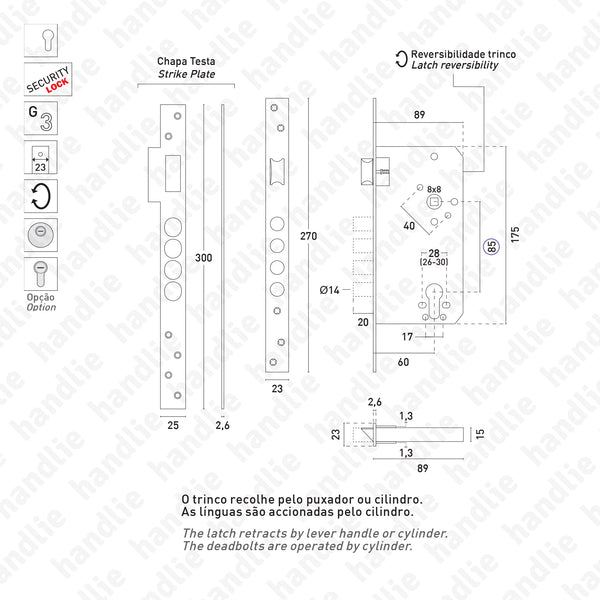

For more information see the technical information image.
