Product Description

M.TS.4000 - EN 1/6 (7)
OVERHEAD DOOR CLOSER WITH LINK ARM FOR SINGLE ACTION DOORS UP TO 120KG (option: maximum 160Kg)
EN 1154: FORCE 1 » 6

• For single action doors
• For intensive use
• Door width: Up to 1400mm (Option: Up to 1600mm)
• Door weight: Up to 120kg (Option: Up to 160Kg)
• Ambidextrous: For right and left handed doors

Certification Standards:
EN 1154 ; CE ; EN 1155 ; EN 1158

• Overhead rack and pinion door closer with link arm
• Closing force EN 1154 - 1 to 6, with progressive adjustment, easy and fast, integrated in the door closer's body
• Visual indication of the closing force at the front
• Thermo-stabilized closing speed with adjustment
• Adjustable backcheck
Safety valve when opening and closing
• Adjustable latching action using the arm
• Frontal adjustment of all functions

Maximum opening angle: 180º

Base price only for the door closer.

Link Arm Options:

- Link Arm, Single Leaf (option)

- Link arm with hold-open (option):
• With hold-open arm, possibility of continuous hold-open of the door between 70° and 150°
• Adjustable hold-open
• Possibility to disable the hold-open

Fire doors: Mounting plate for application in fire doors, not included in the standard version
Segmental doors: Possibility of supplying mounting accessories (separately) for segmental doors.
Mounting on the frame: Angled mounting plate for application over the frame, not included in the standard version. Special model for humid places, by request.

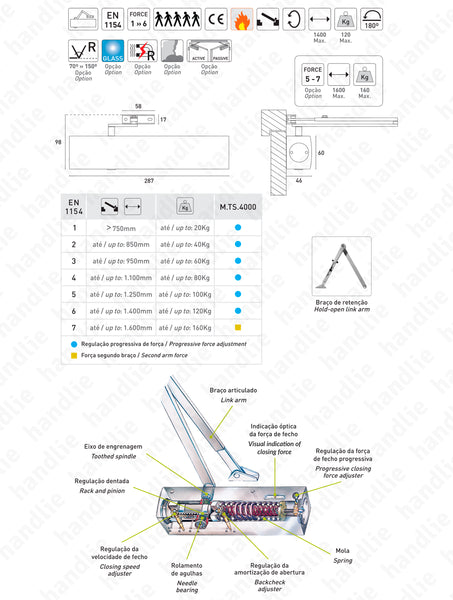

For more information see the technical information image or pdf - Here

Read More
Brand : GEZE
€0,00 VAT inc.
XXX
Unit

Usually in stock, ships within 3 business days
