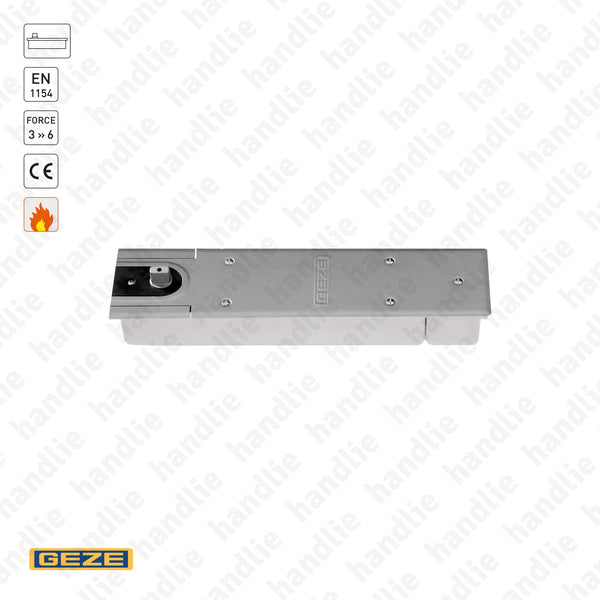

TS.550.NV - Floor spring for doors up to 300Kg / 1400mm | GEZE

Previous Product | Next Product
Product Description

TS.550.NV - EN 3/6
FLOOR SPRING FOR SINGLE OR DOUBLE ACTION DOORS UP TO 300KG
EN 1154: FORCE 3 » 6

• For single or double action doors
• For intensive use
• Door width: Up to 1400mm
• Door weight: Up to 300kg
• Ambidextrous: For right and left handed doors

Stainless steel cover plate included

Certification Standards:
EN 1154 ; CE ; EN 1155 ; EN 1158

• Closing force EN1154 - 3 to 6, progressive adjustment, with mechanical hold-open
• Adjustable closing speed
• Fixed backcheck
• Adjustable latching action
• Safety valve against overload

Maximum opening angle:
• Single action doors: 170º
• Double action doors: 175º
• Closing action from 170º

Hold-open:
• Standard version with hold-open between: 80º - 165º
• Adjustable hold-open
• Possibility to disable hold-open

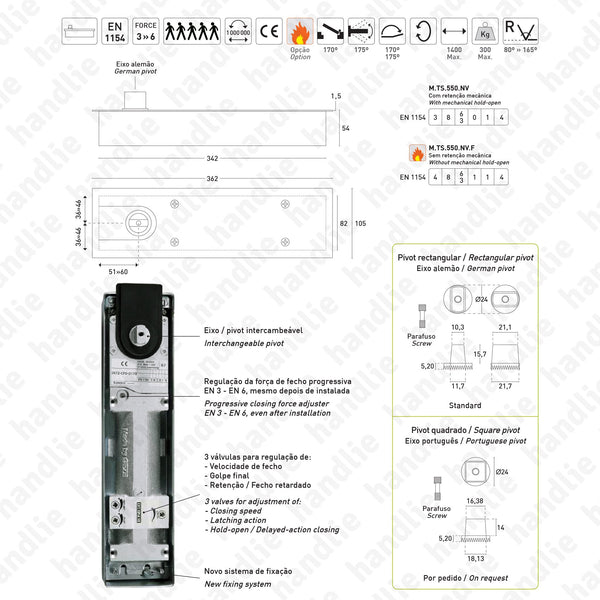

Case dimensions:
Height: 54mm
Length: 342mm / Width: 82mm

Case adjustment:
Length: 9mm / Width: 10mm / Height: 6mm

Interchangeable pivot
Standard: With german pivot (rectangular)
Option: With portuguese pivot (square)

Adjustable pivot distance:
Longitudinal: 51 » 60mm
Diagonal: 36 » 46mm

Tested with 1 000 000 cycles
Accessories for single or double action doors and glass doors - Supplied separately.

For more information see the technical information image or pdf - here
