D.1969 - 2 D Adjustable, reversible and concealed pivot

Previous Product | Next Product
Product Description

D.1969
2 D ADJUSTABLE, REVERSIBLE AND CONCEALED PIVOT

• Top + bottom pivot kit
• Easy application
• Adjustable with an allen key after the door is mounted:
Side (on the door's leaf): up to +-3mm
Depth (on the door's frame): up to +-1.5mm
• Minimum door thickness 30mm
• For single action doors up to 70kg
• Door rotation up to 110º
• Reversible. For right and left handed doors.
• The pivot point is a steel axle coated with self-lubricating material, that provides the sliding, avoiding noise and maintenance over time.
• Tested 200.000 cycles

Option: include cover caps (2 units) - D.ACE.1974

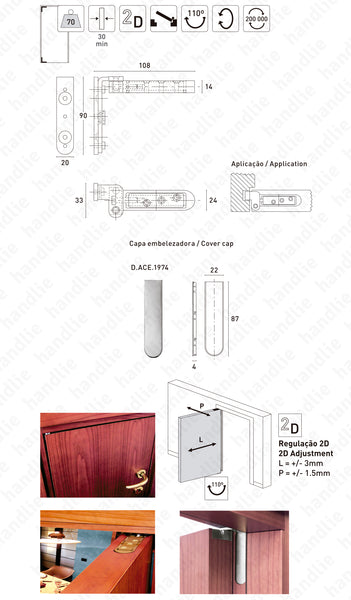

For more information see the technical information image.

Read More
Brand : SFSintec
€0,00 VAT inc.
XXX
Kit
Professional application

Usually in stock, ships within 3 business days
