D.505.28.3D - 3D Concealed hinge - Load capacity 40Kg (2 hinges) - Min. door thickness 28mm

Previous Product | Next Product
Product Description

D.505.28.3D
3D Concealed hinge - Load capacity 40Kg (2 hinges) - Min. door thickness 28mm

Fully concealed hinges with 3D adjustment for building doors

Load capacity:
• Up to 40Kg (2 hinges, doors 2100x900)
• Up to 50Kg (3 hinges, doors 2100x900)

With 3D adjustment
• Side +/- 1,5mm
• Height +/- 2,5mm
• Depth +/- 1,0mm

• Opening angle 180º
• Minimum door thickness 28mm
• Suitable for right and left handed doors
• For doors with wooden frame
• Perfect acoustic insulation, anti-theft protection

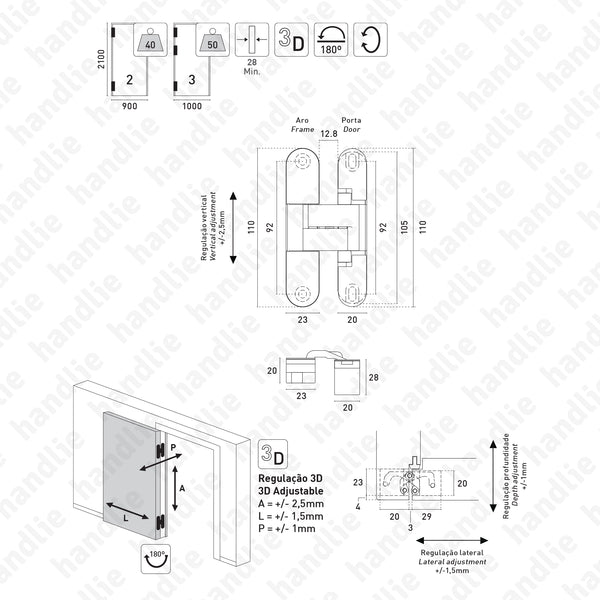

For more information see the technical information image.

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
