D.505.3D - 3D Concealed hinge - Load capacity 40 Kg

Previous Product | Next Product
Product Description

D.505.3D

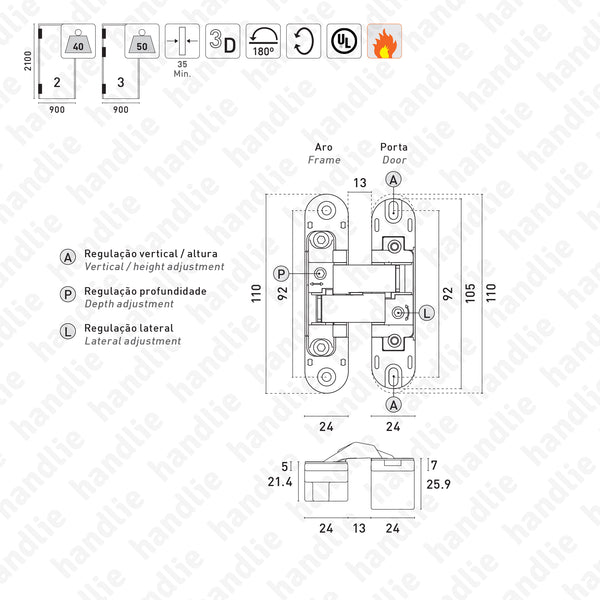

Fully concealed hinges with 3D adjustment for building doors

Load capacity:

Up to 40Kg (2 hinges, doors 2000x900)
Up to 50Kg (3 hinges, doors 2000x1000)

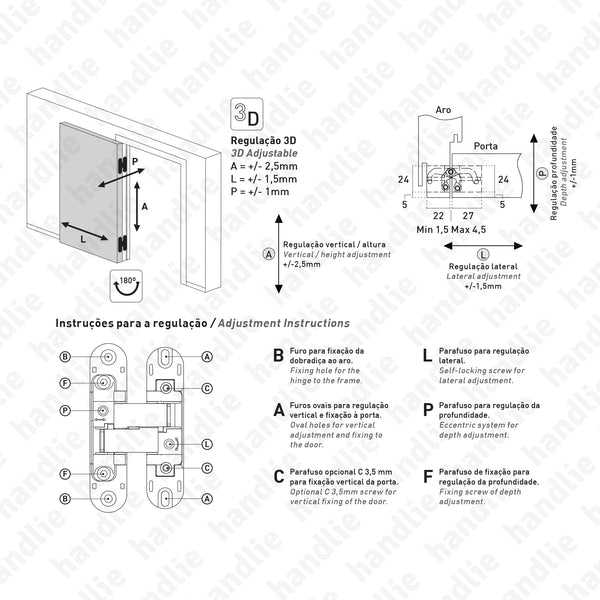

With 3D adjustment

Side +/- 1,5mm
Height +/- 2,5mm
Depth +/- 1,5mm

• Opening angle 180º
• Minimum door thickness 35mm
• Maximum cutter diameter: 24mm
• Suitable for right and left handed doors
• For wood framed doors
• Perfect acoustic insulation and anti-theft protection
• IFT performance certification
• Option: Special hinge (to apply in exteriors with particularly harsh conditions)
• Interchangeable with Hinge D.580.3D (80kg/110kg)
See other products below.
Finishes:
- Satin Nickel / Matt Chrome
- Other finishes by request: Bright Chrome / Golden / White Lacquered / Black Lacquered

For more information see the pdf - Here

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
