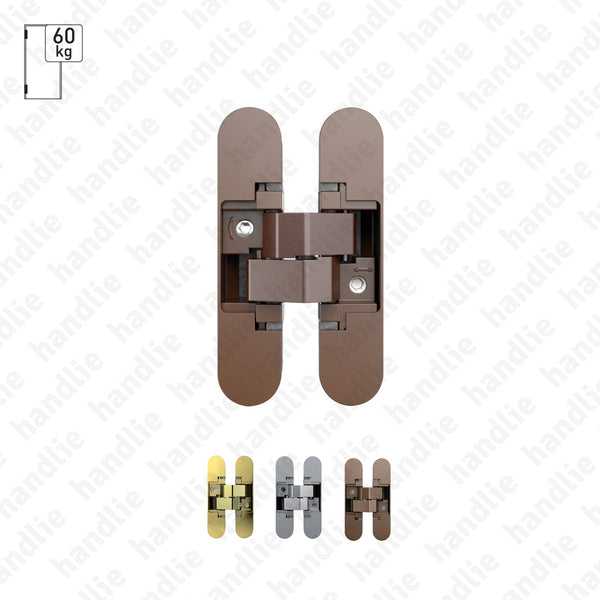

D.506.3D - 3D Concealed hinge - Load capacity 60Kg

Previous Product | Next Product
Product Description

D.506.3D
Fully concealed hinges with 3D adjustment for building doors

Load capacity:
Up to 60Kg (2 hinges, doors 2100x900)
With 3D adjustment
Side +/- 1,5mm
Height +/- 2,5mm
Depth +/- 1mm

• Opening angle 180º
• Minimum door thickness 35mm
• Machining diameter: Max. 16mm
• Suitable for right and left handed doors
• For doors with wooden frame
• Perfect acoustic insulation, anti-theft protection
• IFT performance certification

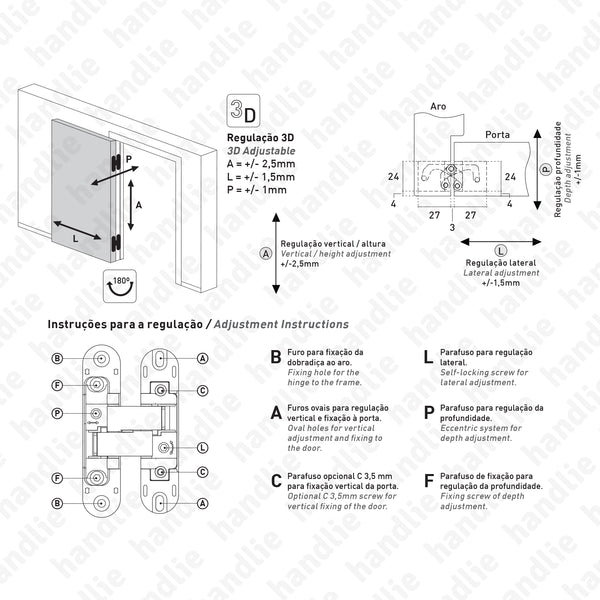

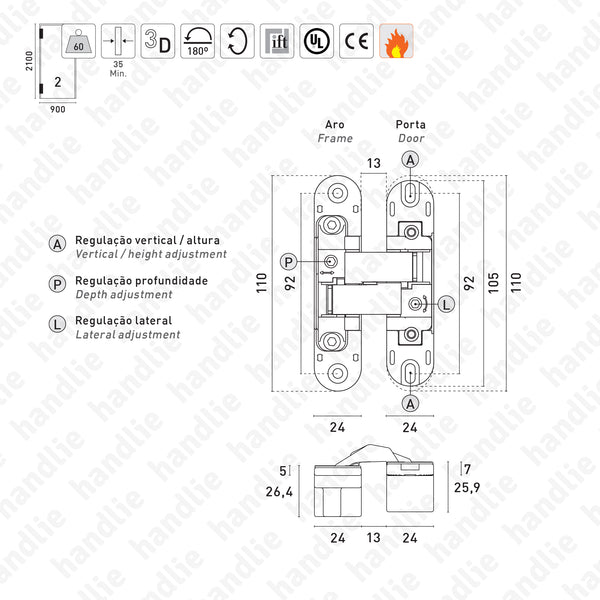

For more information see the technical information image.

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
