CA.6509 - Access control with PIN code and self-programmable proximity card - IP68

Previous Product | Next Product
Product Description

CA.6509

Access control with PIN code and self-programmable proximity card - IP68

- Standalone Access Control
- User capacity: 10 000
- Protection level IP 68 (hostile environments and anti-vandalism)
- Easy installation and programming
- Function indication via tricolor LEDs

• Standalone access control
• Access via: Proximity card or 4-digit PIN code or a cobination of both
• User capacity: 10 000
• Ideal for indoor / outdoor doors in hostile environments (water and dust resistant)
• Vandal proof
• Fully protected electronic components
• IP68 protection rating
• Output power cut for short-circuit protection
• Low power consumption (35mA)
• Easy installation and programming
• Blue backlit keypad
• Function indication via LEDs
• 12V AC/DC electric activation

Specifications:
- Power supply: 12V DC
- Keypad: 12 keys + doorbell button
- Card type: Mifare (CA.C153)
- Card reading distance: 2-5 cm
- Operating current: <100mA
- Operating temperature: -20ºC to 60ºC
- Humidity resistance: 0 - 95% RH
- Relay unlock adjustment: 0-99 seconds
- Connections: Electric lock, Exit button, External alarm
- Includes application and operation manual
- Dimensions: 139x50x22mm

Included accessories:
• 1 PIN / RFID Access Control Unit
• 1 User Manual

Power Supply sold separately
- TRE.TA.6800K5A - HERE

Additional accessories:
- CA.C153 - Mifare user card with normal chip - HERE
- CA.C162 - Key fob with Mifare chip - HERE

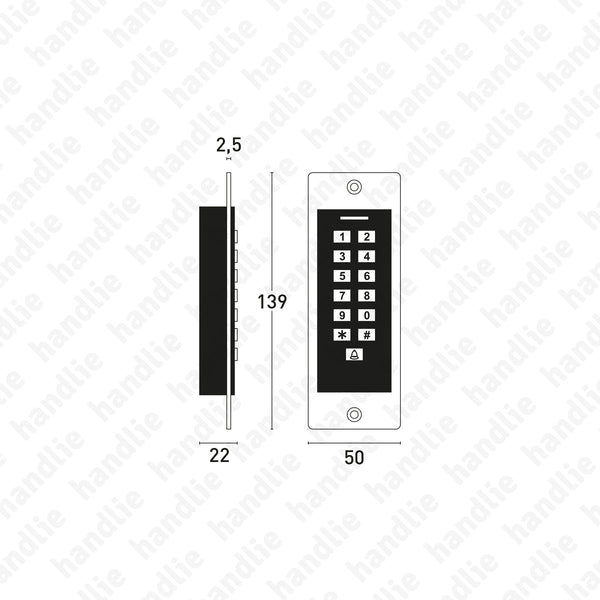

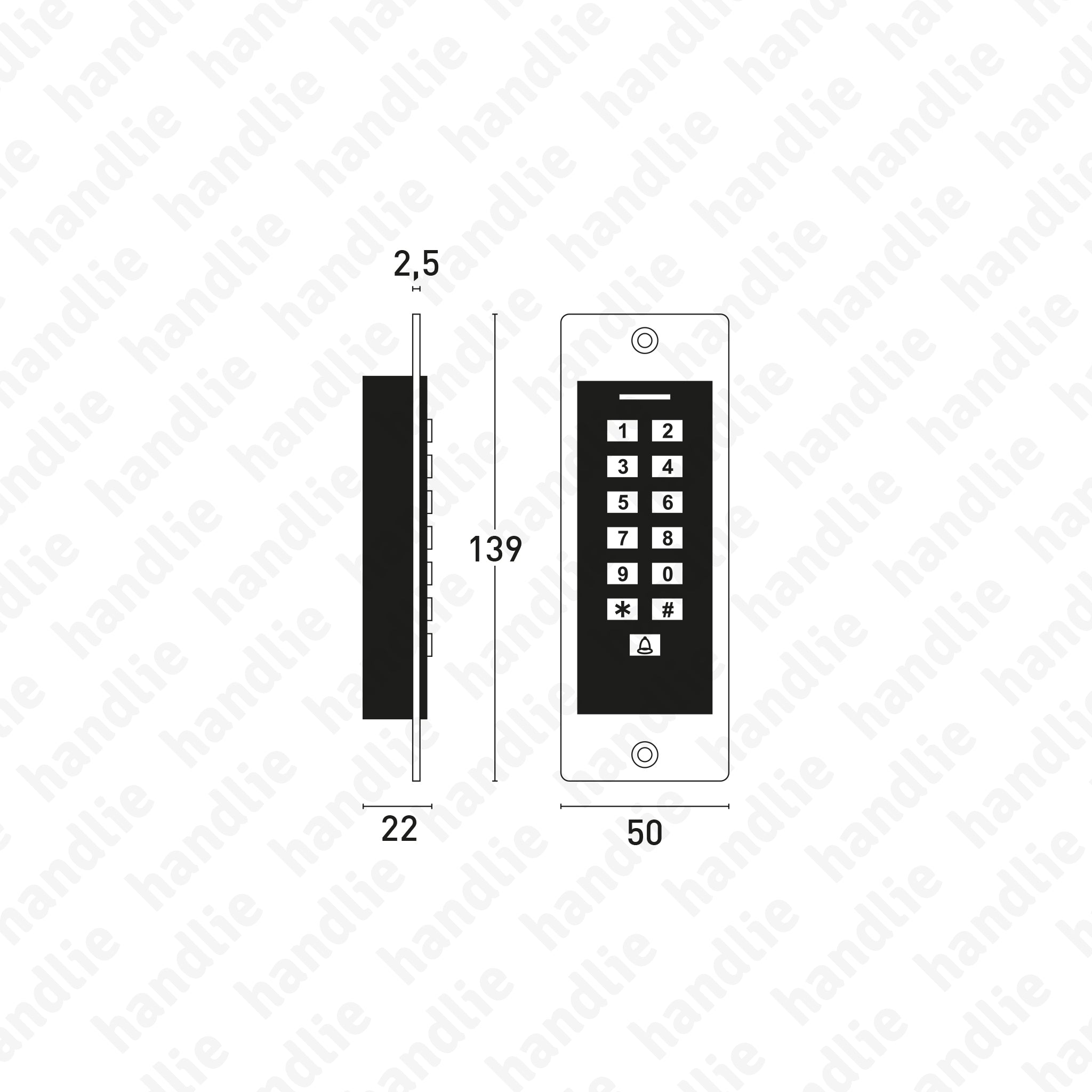

For more information consult the technical drawing.
