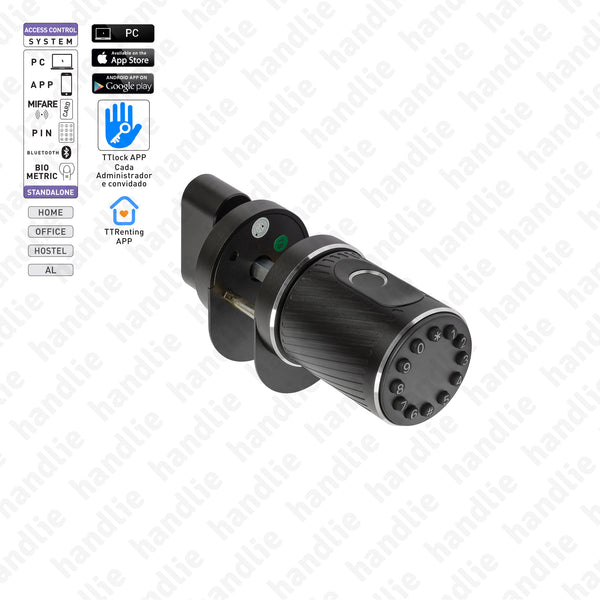

CA.668.TTL - Smart access control – Standalone

Product Description

CA.668.TTL
Smart access control to apply in locks and euro cylinder (Yall) - Standalone

Perfect solution for offices, residences, local accommodations and hostels

Cylinder system adjustable to different door dimensions
- Smart solution allowing for an easy installation without needing to use cables for power supply or internet connection.
- The system uses an app that lets you unlock via Bluetooth, fingerprint, password (keypad) or MIFARE card.

• Interior knob - to lock and unlock the door
• Administrator Bluetooth Code - unlocks with Bluetooth via app
• Administrator Password - unlocks with a permanent master code
• Remote authorization with APP via Bluetooth - unlocks with APP via Bluetooth code after authorization sent by the administrator (PC or smartphone)
• Option: unlocking with MIFARE card (not included)
• Password remote authorization - you can send a permanent or limited password.
• Password protection- blocks temporarily and sounds an alarm when a wrong password is entered 5 times.
• Locks automatically- it can lock automatically from 5-900 seconds after being unlocked
• Low battery alert
• Real time monitoring- monitoring on the app via Bluetooth or internet through the gateway CA.669.TTL
• Real time notifications- when the smartphone and the lock are connected or internet through the gateway CA.669.TTL
• Internet connection - real time control with internet connection see gateway CA.669.TTL
• Compatible locks: F.850.1/ F.880.1/ F.114.91/ F.724.1/ F.729.1/ F.788.1/ F.880.5/ F.881.91/ F.892.6/ F.922.8

Technical specifications:
• Material: Aluminium
• Finish: Black
• Keypad: Illuminated rubber buttons
• Unlocking: YALL cylinder system
• Handle dimensions: Ø56mm x 81mm
• Door thickness: 35-60mm
• Communication mode: Bluetooth 4.0
• Unlock: Bluetooth, Fingerprint, Password, Mechanical key, MIFARE Card
• Operating Systems: Android 4.3 / IOS 7.0 or higher
• Unlocking time: ≈1.5 seconds
• Power Supply: 4 AAA batteries / 6V (not included)
• Low battery alert: less than 4.8V
• Exterior power: if needed
• Operating temperature: -10ºC to 55°C
• Operating humidity: 0%~95% HR
• Storage capacity:
- Fingerprint 200;
- Password 150;
- Card 200 (not included)

Kit with:
• 1 Exterior device
• 1 Interior device
• 3 Cards
• 2 Mechanical keys to unblock system
• 1 User's guide
• Fixing screws and mounting accessories
• 1 Spindle Q8x80mm
• 1 YALL Cylinder system L=22mm, Q8

Supplied separately:
• Mifare user cards with standard chip - HERE
• Electric locks and strikes

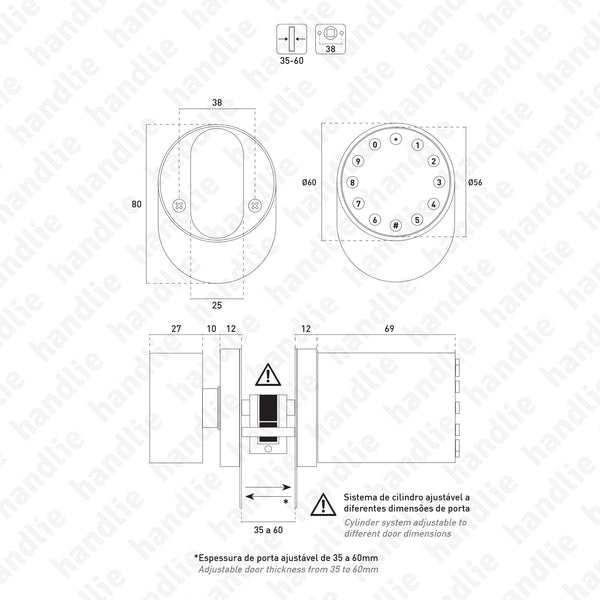

For more information consult the technical drawing.
