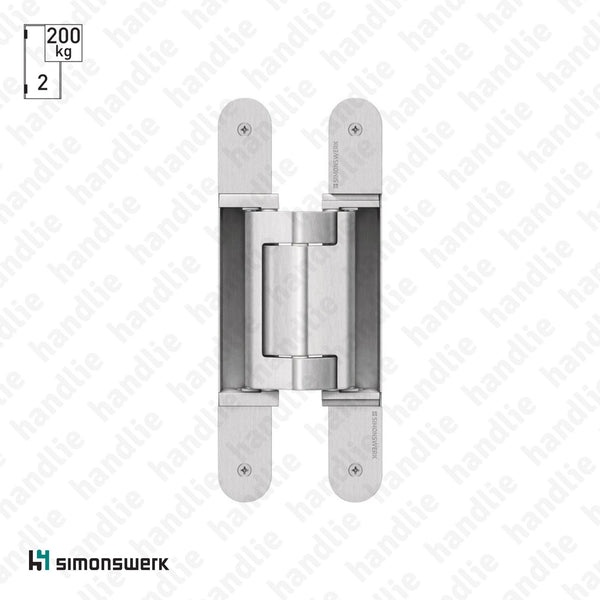

TE.640.3D - TECTUS 3 D Concealed hinge - Load capacity 200kgs

Product Description

TECTUS D.TE.640.3D

Fully concealed hinges for heavy-duty doors up to 200Kgs (2 hinges, doors 2000x1000).

With 3D adjustment

• Side +/- 3mm
   Height +/- 3mm
   Depth +/- 1mm
• Opening angle 180º
• Minimum door thickness 40mm
• Cutter diameter: 24mm
• Suitable for right and left handed doors
• For wood, steel or aluminium framed doors
• Perfect acoustic insulation, anti-theft protection and fire and smoke resistance.
• UL and CE Certification. Suitable for fire doors
• IFT performance certification

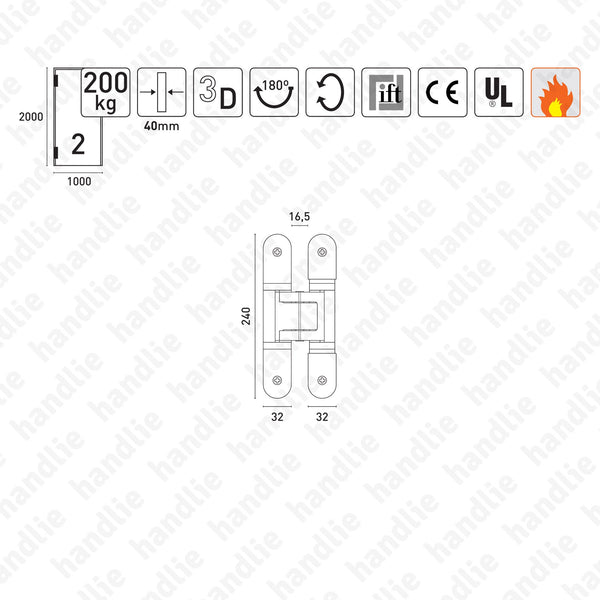

For more information see the technical information image and pdf - Here

Read More
Brand : Simonswerk
€0,00 VAT inc.
XXX
Unit
Professional application

Usually ships within 15 business days
