F.115.91.03.R - Magnetic mortise lock for euro profile cylinder (Series 115)

Previous Product | Next Product
Product Description

F.115.91.03.R - Round faceplate

• Magnetic latch / Cylinder
• Round faceplate
• Faceplate width: 18mm
• Backset: 50mm
• Follower: 8mm
• Center to center: 85mm
• Reversible (right / left)
• Mortise lock for doors with magnetic latch for euro cylinder
• Cylinder supplied separately
• The latch is operated by the magnetic action on the strike plate. Retracts with the movement of the handle or with the cylinder.
• When operating the cylinder's key the magnetic latch locks / unlocks.
• Applicable in right and left handed doors without needing to reverse the latch.
• Included strike plate / magnetic support

Other versions F.115 Series:
- F.115.91.01 - key - HERE
- F.115.91.03 + CIL.AWC - WC/2 followers (WC) - HERE

Finishes:

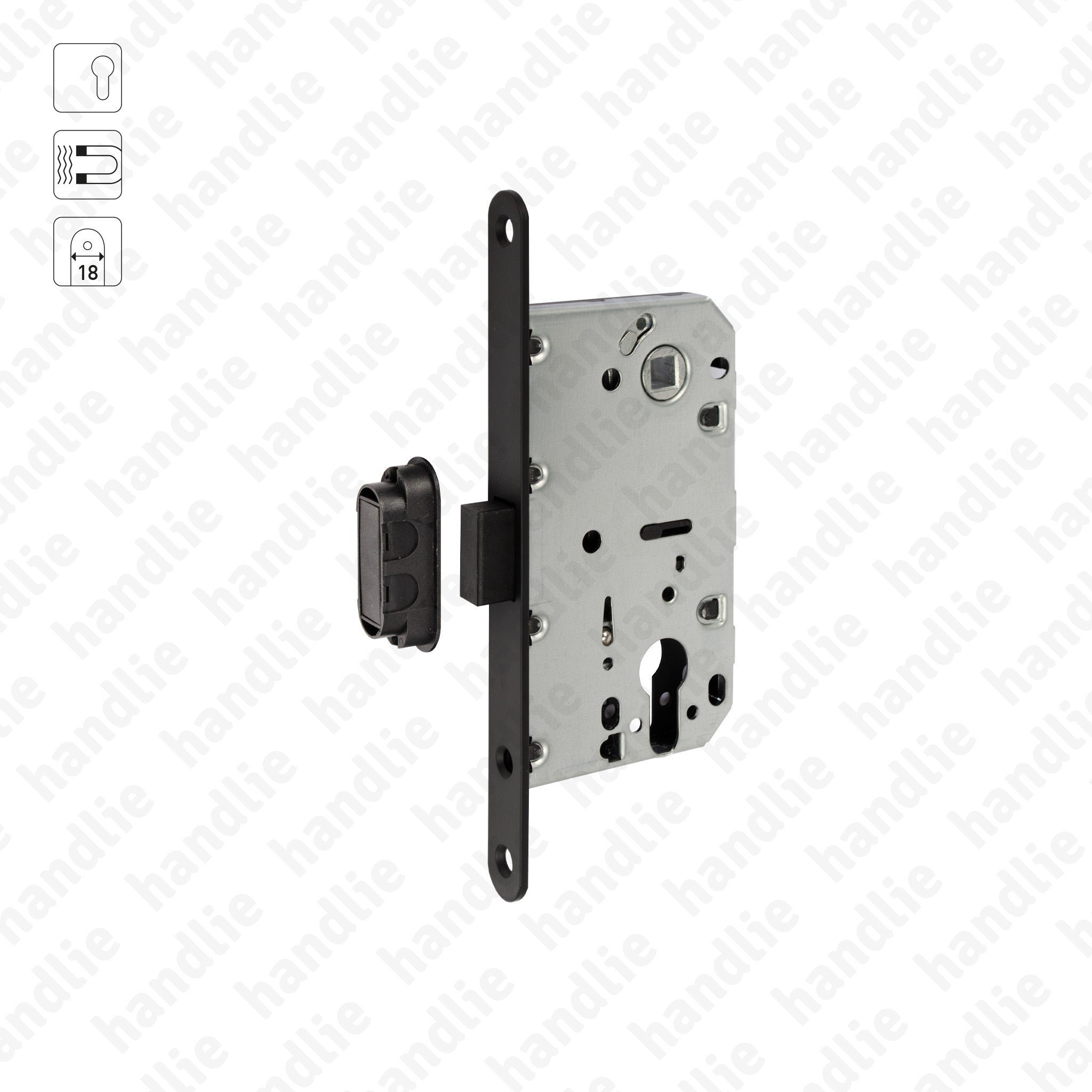

- Satin Nickel and Matt Black

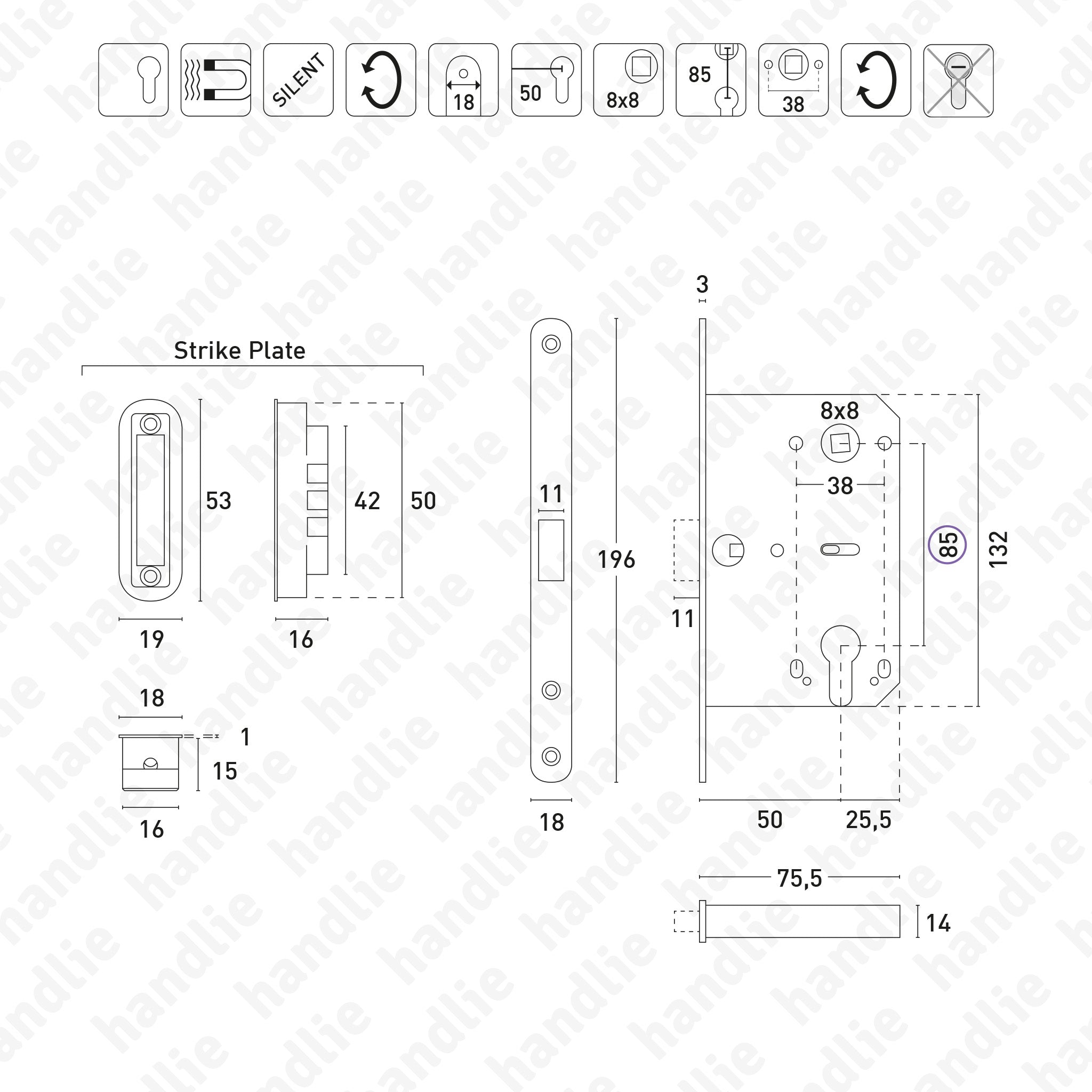

For more information consult the technical drawing.

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Unit

Usually in stock, ships within 3 business days
