D.580.3D - 3D Concealed hinge - Load capacity 80 Kg

Product Description

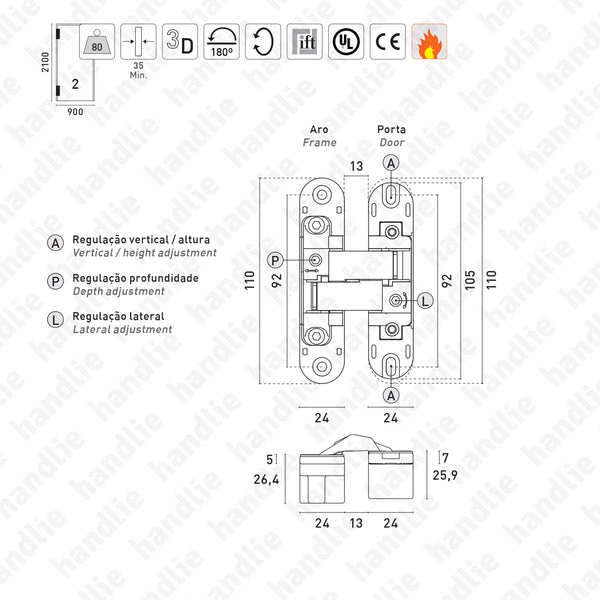

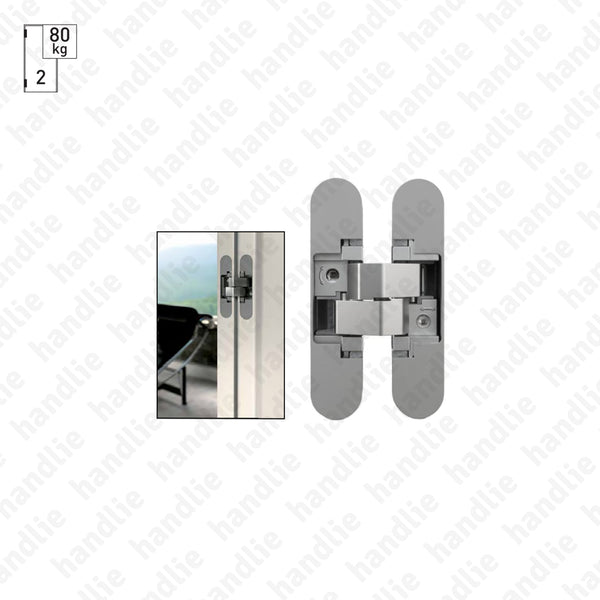

D.580.3D
Fully concealed hinges with 3D adjustment for building doors

Load capacity:
Up to 80Kg (2 hinges, doors 2100x900)

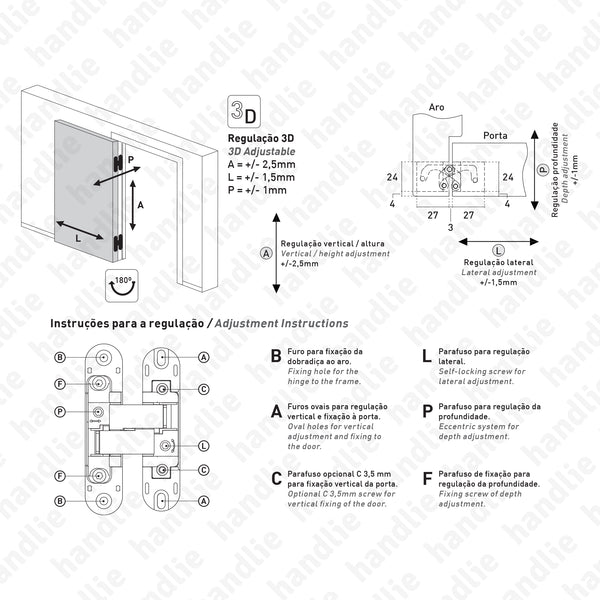

With 3D adjustment

Side +/- 1,5mm
Height +/- 2,5mm
Depth +/- 1,5mm

• Opening angle: 180º
• Minimum door thickness: 35mm
• Maximum cutter diameter: 24mm
• Suitable for right and left handed doors
• For wood framed doors
• Perfect acoustic insulation and anti-theft protection
• CE Certification. Suitable for fire doors
• IFT performance certification

Combines with D.680.3D

Sold by unit

For more information see the pdf - Here

Read More
Brand : handlie
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
