TE.340.3D - TECTUS 3 D Concealed hinge - Load capacity 80Kgs

Product Description

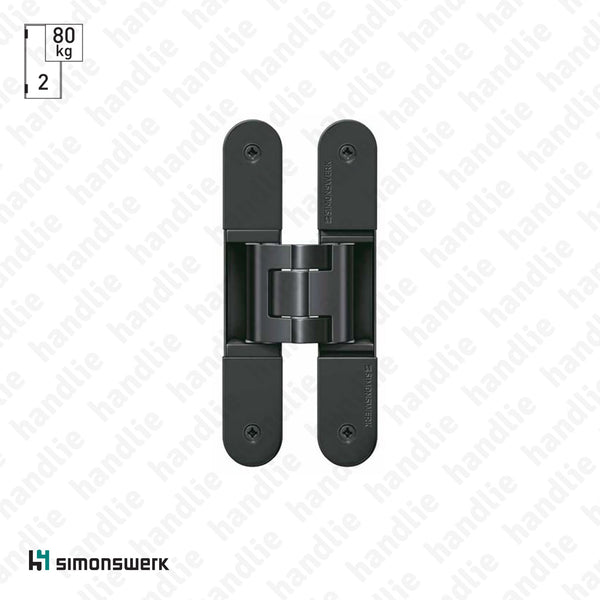

TECTUS D.TE.340.3D
Fully concealed hinges for heavy-duty doors up to 80Kgs (2 hinges, doors 2000x1000).
With 3D adjustment

• Side +/- 3mm
   Height +/- 3mm
   Depth +/- 1mm
• Opening angle 180º
• Minimum door thickness 35mm
• Cutter diameter: 24mm
• Suitable for right and left handed doors
• For wood, steel or aluminium framed doors
• Perfect acoustic insulation, anti-theft protection and fire and smoke resistance.
• UL and CE Certification. Suitable for fire doors
• IFT performance certification
• TE.340.3D: Replaces the previous one TE.310.3D

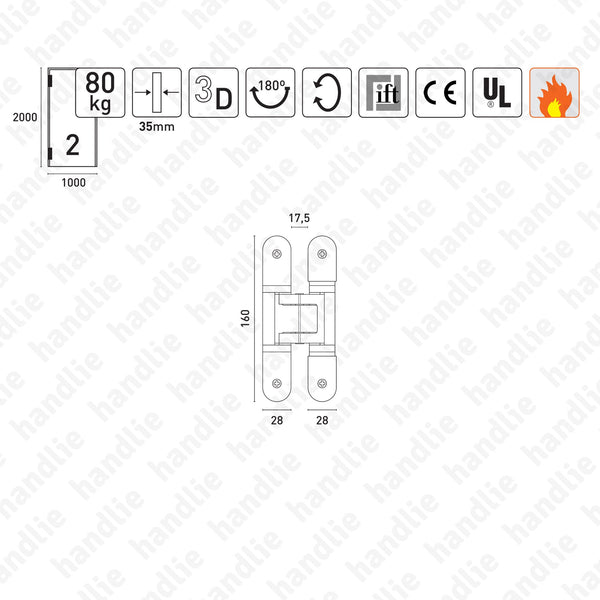

For more information see the technical information image and pdf - Here

Read More
Brand : Simonswerk
€0,00 VAT inc.
XXX
Unit
Professional application

Usually in stock, ships within 3 business days
